Product Details:
|
| Specification Tem(°C): | 1260-1400 | Working Temp(°C): | 1000-1350 |
|---|---|---|---|
| Application: | Liners Of Industrial Furnace | Grade: | Common |
| Color: | White | Strength: | High Strength |
| High Light: | heat resistant fiber,ceramic fiber blanket |
||

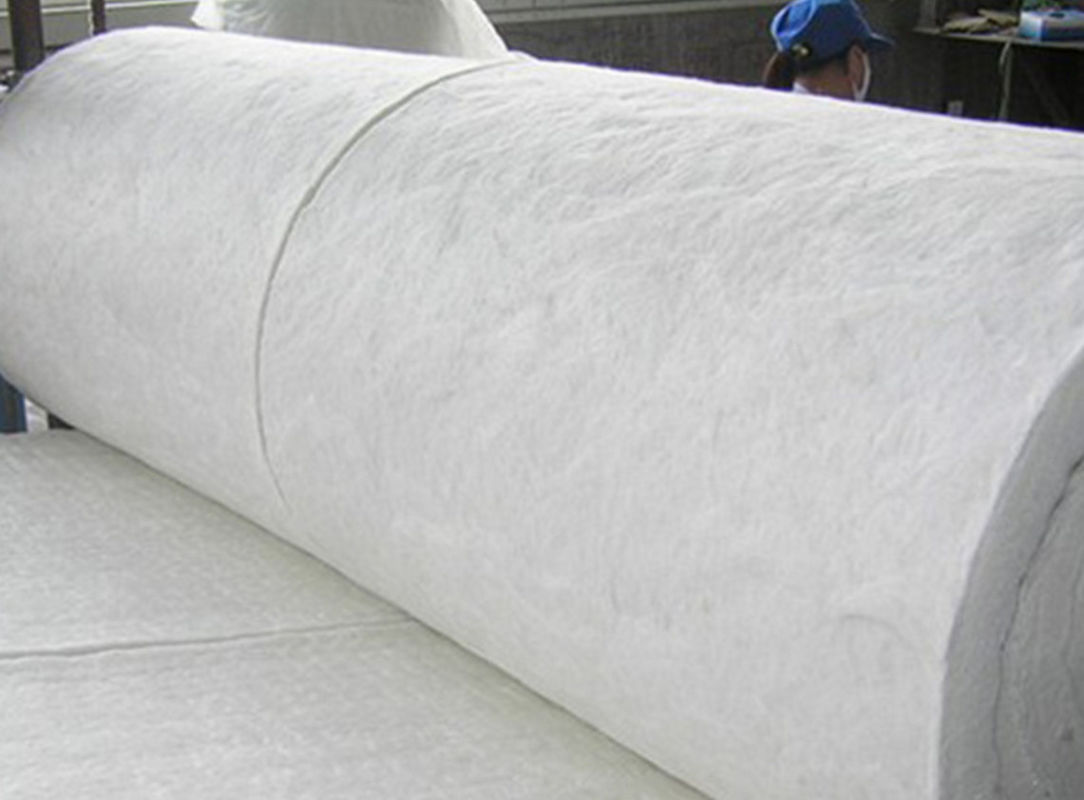

6-50mm thermal Insulation Refractory Ceramic Fiber Blanket fire insulation
1. Description
It is made of high quality ceramic fiber spun bulk by using double inside needling methods which improve the tensile strength and the flatness of the ceramic fiber blanket.
Kmatai ceramic fiber blanket contains no organic binders which guarantee the stability and constructability of the ceramic fiber blanket at both high temperature and low temperature.
It is widely used in various sectors of refractory, insulation, thermal insulation field.
| Size and Specifications: |
7320x610x25mm 3660x610x50mm Thickness range: 6mm to 60mm Other size pls contact us freely |
| Characteristics: |
(1) Excellent chemical stability; (3) Excellent tensile strength; (4) Low thermal conductivity; (6) Excellent insulation properties; |
| Typical Use |
(1) Industrial furnace wall lining; (5) Module / folded module processing material; |
Technical data sheet for Insulation Ceramic Fiber Blanket in green below.
We can supply 1050COM,1260STD,1260HP,1400,1450HZ ceramic fiber blanket.
| Types(°C) | 1050 Common | 1260 STD | 1260 HP | 1400 | 1450 HZ | |
| Operation Temp(°C) |
950°C (1742 °F ) |
1050°C (1922°F) |
1100°C (2012°F) |
1200°C (2192°F) |
1350°C (2462°F) |
|
|
Density (kg/m3) |
64-160 | |||||
| Permanent Change on Heating (%) |
950°Cx24h ≤-3 |
1050°Cx24h ≤-3 |
1100°Cx24h ≤-3 |
1200°Cx24h ≤-3 |
1350°Cx24h ≤-3 |
|
| Theoretic Heat Conductive Co-efficient W/(m·k)(128kg/m3) |
0.15 (600°C) 0.22 (800°C) |
0.12 (600°C) 0.20( 800°C) |
0.12 (600°C) 0.20 (800°C) |
0.12 (600°C) 0.20 (800°C) |
0.16 (800°C) 0.20 (1000°C) |
|
|
Tensile Strength (Thickness 25mm) |
≥0.04 | ≥0.05 | ≥0.05 | ≥0.04 | ≥0.06 | |
|
Chemical Composition |
Al2O3(%) | 44 | 45-46 | 47-49 | 52-55 | 39-40 |
| Al2O3+SiO2(%) | ≥96 | ≥98 | ≥99 | ≥99 | - | |
| ZrO2(%) | - | - | - | - | 15-17 | |
|
Al2O3+SiO2 +ZrO2(%) |
- | - | - | - | ≥99 | |
| Fe2O3(%) | ≤1.0 | ≤0.8 | ≤0.2 | ≤0.2 | ≤0.2 | |
| Na2O+K2O(%) | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | |
| CaO+MgO | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 |
≤0.2 |
|
2. Package
1. Woven bag package and carton box packge for your selection.
2. Carton box packge is made from 6 layer kraft paper to gurantee goods' safety during long distance sea delivery.
