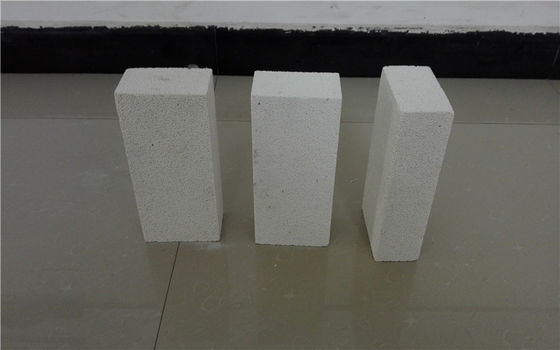

Glass Fusing Kiln Insulating Fire Brick , Rectangle Ceramic Fire Brick

Glass Fusing Kiln Insulating Fire Brick , Rectangle Ceramic Fire Brick
Glass Fusing Kiln Insulating Fire Brick , Rectangle Ceramic Fire Brick

Large Image :  Glass Fusing Kiln Insulating Fire Brick , Rectangle Ceramic Fire Brick

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTMFB7
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: Negotiable
Packaging Details: PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 50000PCS / MONTH

Glass Fusing Kiln Insulating Fire Brick , Rectangle Ceramic Fire Brick

Description
Features: Thermal Shock Material: Mullite
Using Temperature: JM23-30 Color: Pure White
Shape: Rectangle Brick Size: 230*114*65mm
High Light:

mullite insulating brick

,

kiln fire bricks



JM23-30 mullite lightweight insulation refractory fire brick for glass fusing kiln



1. Description

Lightweight mullite refractory bricks are made from good quality and superpure raw materials, with strictly classified fillings according to their grades. These fillings can form a uniform pore structure after burnt during the process of manufacture. Each grade of products has unique design to meet different thermal, physical and chomical demands.



2. Application:

The refractory linings of hot surfaces or backing heat-insulating layers of other refractory materials. The refractory linings or heat-insulating materials of the industries, such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns,etc.

Mullite Lightweight Bricks are primarily used for lining of the shuttle kiln for calcining refractory material, industrial ceramics , domestic ceramics and the bricks for the high temperature zone of tunnel kiln, insulation fire bricks for high-temperature furnace.



3. Specification

Sunrise Brand JM23 JM26 JM28 JM30 JM32
USA Brand IFB2300 IFB2600 IFB2800 IFB3000 IFB3200
Classification Temperature (°C) 1260 1430 1540 1650 1760
Bulk Density (g/cm3) 0.55-0.60 0.78 0.88 1.03 1.25
Cold Crushing Strength (Mpa) 1.2 1.6 2.1 2.5 3.5
Modulus of Rupture (Mpa) 0.9 1.4 1.6 2.1 2.1

Reheating Linear Change (%)

CT-30 °CX 8H

1230°C

-0.5

1400°C

-0.5

1510°C

-0.5

1620°C

-0.9

1730°C

-0.9

Thermal Expansion

1000°C(%)

0.5 0.7 0.8 0.9 1.1
Thermal conductivity(W/m.k) 400°C 0.14 0.27 0.32 0.41 0.49
600°C 0.16 0.29 0.34 0.43 0.5
800°C 0.18 0.31 0.36 0.44 0.51
1000°C 0.20 0.33 0.38 0.45 0.53
Al2O3 (%) 37 58 67 73 77
Fe2O3 (%) 1.0 1.0 1.0 0.5

0.4





Characteristics of our Mullite Insulation Fire Brick IFB(JM-IFB):
1) After shaping and sintering, cutting and grinding processing are done, drilling is necessary according to brick drawings.
2) Little impurities of iron and alkali metal
3) High temperature resistance
4) uniform structure and high cold crushing strength
5) Good thermal shock resistance, stable volume, good insulation performance in high temperature
6) Low thermal conductivity



4. Pacakge

1. The Mullite Insulating Fire Brick will be packed as the standard of exporting or packed on wooden pallet with three layers water-proof shrink film and tightened with plastic/steel bandages,when in the transportation process,we should pay attention to moisture-proof and light handling.
2. The packing of Refractory Brick will accept customer's requirement if any.
3. Delivery within 10-15 working days after your payment.
4. Fast delievery accepted by customers.
