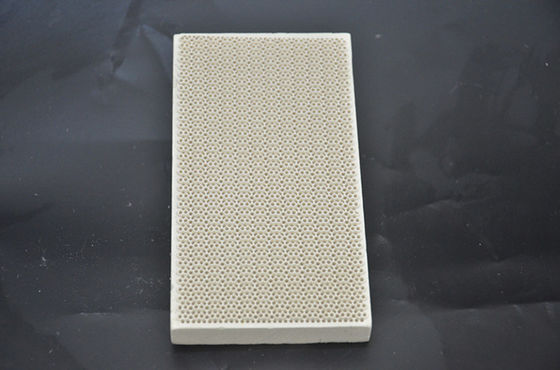

Rectangle Stove Burner Plates For Electric Stove High Temperature Resistance

Rectangle Stove Burner Plates For Electric Stove High Temperature Resistance
Rectangle Stove Burner Plates For Electric Stove High Temperature Resistance Rectangle Stove Burner Plates For Electric Stove High Temperature Resistance

Large Image :  Rectangle Stove Burner Plates For Electric Stove High Temperature Resistance

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTICB21
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability: 10000PCS/MONTH

Rectangle Stove Burner Plates For Electric Stove High Temperature Resistance

Description
Size: As Request Material: Cordierite
MOQ: 1000PCS Density: 2.0g/cm3
Type: Plate Water Absorption: 50.4%
Highlight:

infrared ceramic honeycomb

,

gas stove burner plates

High efficiency Cordierite honeycomb gas heater plate for gas burner

1. Details
Cordierite honeycomb gas heater plate is widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost.
Our  cordierite honeycomb gas heater plate is high heat transfer plate, it can increase burning efficiency.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating conditions.



Item
Test Condition
Unit&Symbol
Cordierite ceramics
The main chemical ingredient


MgO, Al2O3,SiO2
Bulk Density

gm/cc
2.0
Maximum Use Temperature


1200℃
Water absorption

%
0
Hardness

HV
800
Bending Strength
20℃



Kgf/cm2
900
Compressive Strength
20℃
Kgf/cm2
3500
Fracture Toughness
K(I c)
Mpa m1/2

Thermal expansion

1X 10-6/℃
≤2.0
Thermal conductivity
25℃-30℃
W/m.k
1.3
Thermal Shock Resistance
Tc
250
Dielectricity constant
1MHz.25℃

Advantages as follows:
 Outstanding Strength
Uniform radiant burning
Excellent thermal shock resistance
Save up to 30~50% energy cost
Burn without flame, high burning efficiency, low noise
Reduce the harmful gas such as CO, NOx, etc more than 90%




3. Application

Barbecues Gyro Cookers
Broilers Pizza Ovens
Convection Ovens Pressure Fryers
Deep Fat Fryers Process
Evaporators Ranges
Gas Ovens Rotisserie Ovens
Griddles Space Heaters
Greenhouse CO2 Sear Cookers
