Product Details:
|
| Chemical Content: | Al2O3+SiO2+MgO | Material: | Cordierite |
|---|---|---|---|
| Color: | White | Density: | 2.0g/cm3 |
| Shape: | Rectangle | Water Absorption: | 50.4% |
| High Light: | infrared ceramic honeycomb,stove top burner plates |
||
1. Application
1. Gas stove / cooker /Roaster
2. Gas room heater
3. Barbecue furnace
4. Industrial baking equipment
2. Advantage & features:
1. Energy saving up to 30-50%
2. Balanced and well-distributed heating
3. No flame burning, No noise burning
4. Reduce harmful exhaust gas
5. Strong mechanical strength & thermal shock resistance
The gas combustion is occurred inside the holes of the China Infrared Ceramic Plate; and the heat energy is radiated high-efficiently in the means of ultra-red rays, avoiding energy loss through visible light. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.
3. Technical parameters:
Note: Size and decorative design will be produced according to customer requirement
|
Item
|
Test Condition
|
Unit&Symbol
|
Cordierite ceramics
|
|
The main chemical ingredient
|
|
|
MgO, Al2O3,SiO2
|
|
Bulk Density
|
|
gm/cc
|
2.5
|
|
Maximum Use Temperature
|
|
|
1200℃
|
|
Water absorption
|
|
%
|
0
|
|
Hardness
|
|
HV
|
800
|
|
Bending Strength
|
20℃
|
Kgf/cm2
|
900
|
|
Compressive Strength
|
20℃
|
Kgf/cm2
|
3500
|
|
Fracture Toughness
|
K(I c)
|
Mpa m1/2
|
|
|
Thermal expansion
|
|
1X 10-6/℃
|
≤2.0
|
|
Thermal conductivity
|
25℃-30℃
|
W/m.k
|
1.3
|
|
Thermal Shock Resistance
|
Tc
|
℃
|
250
|
|
Dielectricity constant
|
1MHz.25℃
|
|
6
|
|

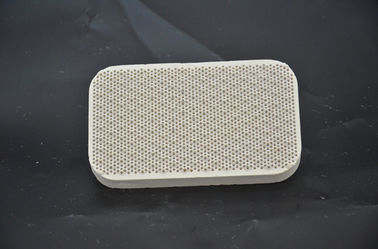

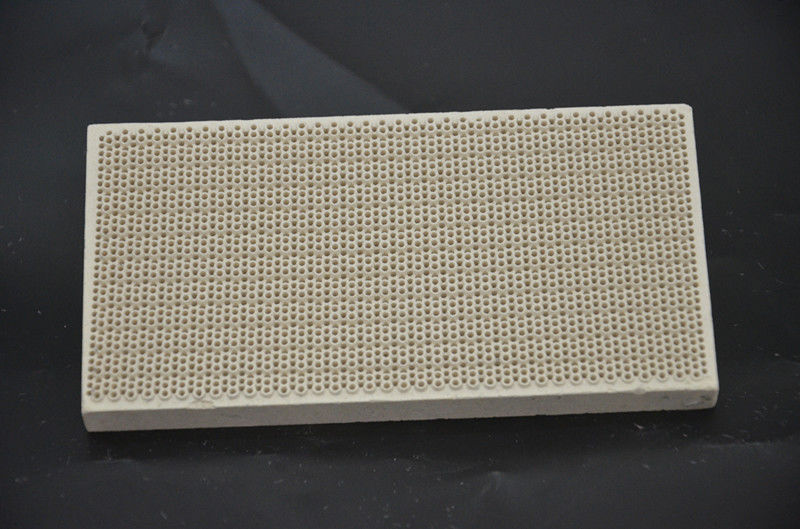

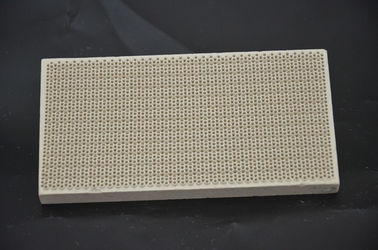

MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
|
|||
|
φ50*13mm
|
φ66*13mm
|
φ80*13mm
|
φ140*13mm
|
|
φ107*13mm
|
φ136*13mm
|
φ172*13mm
|
100*44*13mm
|
|
100*60*13mm
|
160*60*13mm
|
100*70*13mm
|
135*80*13mm
|
|
132*92*13mm
|
135*92*13mm
|
140*95*13mm
|
155*95*13mm
|
|
140*100*13mm
|
135*60*13mm
|
88*62*13mm
|
134*94*13mm
|
