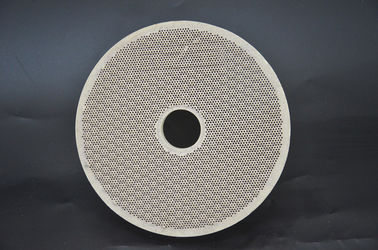

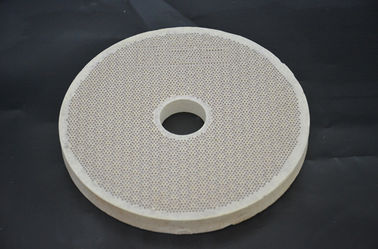

Cordierite Infrared Ceramic Burner Plate White For Gas - Cooker φ140*13mm

Cordierite Infrared Ceramic Burner Plate White For Gas - Cooker φ140*13mm
Cordierite Infrared Ceramic Burner Plate White For Gas - Cooker φ140*13mm Cordierite Infrared Ceramic Burner Plate White For Gas - Cooker φ140*13mm

Large Image :  Cordierite Infrared Ceramic Burner Plate White For Gas - Cooker φ140*13mm

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTICB12
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability: 20000PCS/MONTH

Cordierite Infrared Ceramic Burner Plate White For Gas - Cooker φ140*13mm

Description
Hole Size: 1.3mm MOQ: 1000PCS
Type: Ceramic Burning Plate Density: 2.0g/cm3
Shape: Round Certification: CE, SGS,ISO9001
High Light:

infrared ceramic honeycomb

,

gas stove burner plates

1. Product Description

Cordierite infrared ceramic burner plate ceramic burner plate has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.

Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating condition.



Advantage as below:

1 Saving gas more than 22%

2 Making Inflammable combustion

3 Decreasing the CO and NO

4 Operating safety without by wind influence when operating in outdoors.



2. Product Data

MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
φ50*13mm
φ66*13mm
φ80*13mm
φ140*13mm
φ107*13mm
φ136*13mm
φ172*13mm
100*44*13mm
100*60*13mm
160*60*13mm
100*70*13mm
135*80*13mm
132*92*13mm
135*92*13mm
140*95*13mm
155*95*13mm
140*100*13mm
135*60*13mm
88*62*13mm
134*94*13
Item Index
Material Cordierite
Water absorption 50.4%
Open Porosity 61%
Specific gravity 0.9-1.10Kg/cm3
Thermal expansion coeffecient 1.5-3(×10-6K-1)
Temperature softening >1280
Cooking Surface Temperature 1000-1200
CO Release ≤0.006%
NOx Release ≤5ppm

For more details,please feel free to contact with me.
