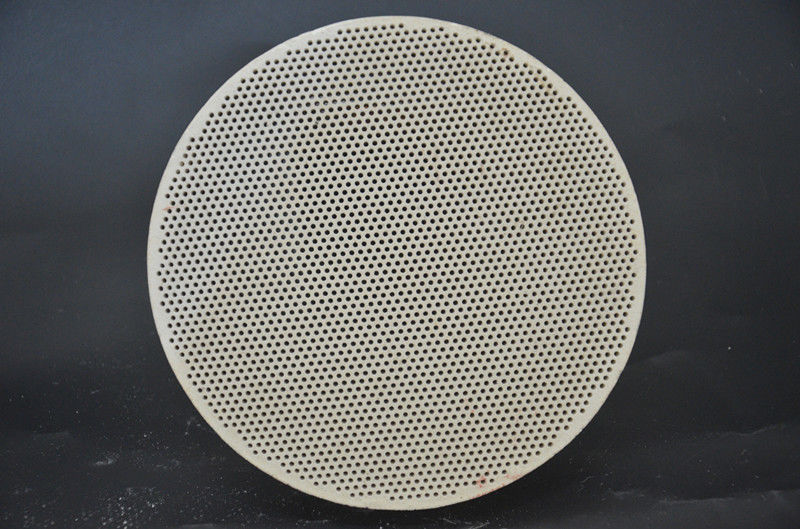

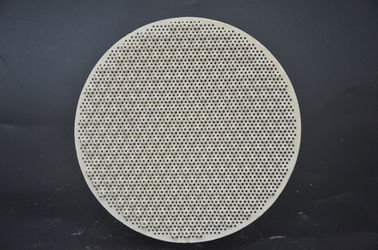

Far Infrared Radiation Ceramic Burner Plate Energy Saving Cordierite Material

Far Infrared Radiation Ceramic Burner Plate Energy Saving Cordierite Material
Far Infrared Radiation Ceramic Burner Plate Energy Saving Cordierite Material Far Infrared Radiation Ceramic Burner Plate Energy Saving Cordierite Material

Large Image :  Far Infrared Radiation Ceramic Burner Plate Energy Saving Cordierite Material

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTICB10
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability: 10000PCS/MONTH

Far Infrared Radiation Ceramic Burner Plate Energy Saving Cordierite Material

Description
MOQ: 1000PCS Material: Cordierite
Porosity (%): ≥61% Density: 2.0g/cm3
Shape: Round Feature: Eco-friendly
High Light:

infrared ceramic honeycomb

,

stove top burner plates



1. Product Description

The honeycomb ceramic as heat transfer media is the key part for heat storaging HTAC(High Temperature Air Combustion) technology, which has been widely applied in all kinds of pushing-steel heating furnace, RTO(Regenerative Thermal Oxidation), stepping heating furnace, heat treatment furnace, forging furnace, dissolving furnace, steel wrapping/middle wrapping baking apparatus, soaking pit, radiation tap incendiary apparatus, covering furnace, high temperature hot-blast stove in metallurgical machine building and all kinds of ceramic cellar stove, glass cellar stove in building materials, and all kinds of tap heating stove, splitting stove, other industrial stove cellar, too.

The gas combustion is occurred inside the holes of the ceramic combustion plate; and the heat energy is radiated efficiently in the means of ultra-red rays. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

Our infrared ceramic burner plate is high heat transfer plate, it can increase burning efficiency.



2. Product Specification

MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
φ50*13mm
φ66*13mm
φ80*13mm
φ140*13mm
φ107*13mm
φ136*13mm
φ172*13mm
100*44*13mm
100*60*13mm
160*60*13mm
100*70*13mm
135*80*13mm
132*92*13mm
135*92*13mm
140*95*13mm
155*95*13mm
140*100*13mm
135*60*13mm
88*62*13mm
134*94*13mm

Materials
Cordierite
Water absorption (%)
≥ 50.4
Porosity (%)
≥ 61
Specific gravity (g/cm3)
0.6-0.9
Thermal expansion coefficient (10-6/K)
1.5-3
Temperature softening (°C)
>1200
Surface burning temperature (°C)
1000-1200





3. Application

1). Gas stove / cooker /Roaster

2). Gas room heater

3). Barbecue furnace

4). Industrial baking equipment
