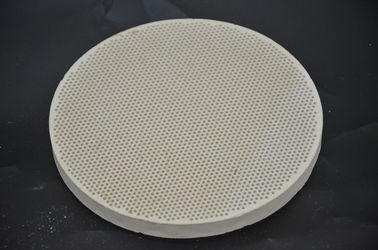

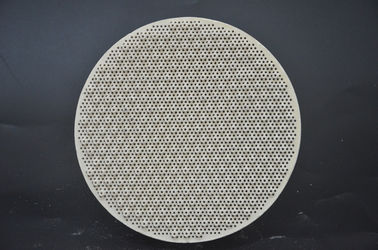

Refractory Ceramic Gas Stove Plates Round Shape For Baking Bread SGS

Refractory Ceramic Gas Stove Plates Round Shape For Baking Bread SGS
Refractory Ceramic Gas Stove Plates Round Shape For Baking Bread SGS Refractory Ceramic Gas Stove Plates Round Shape For Baking Bread SGS

Large Image :  Refractory Ceramic Gas Stove Plates Round Shape For Baking Bread SGS

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTICB8
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability: 10000PCS/MONTH

Refractory Ceramic Gas Stove Plates Round Shape For Baking Bread SGS

Description
Name: Cordierite Infrared Honeycomb Ceramic Burner Plate For Baking Bread Packing: Carton Box
Main Content: Cordierite Density: 2.0g/cm3
Shape: Round MOQ: 1000PCS
High Light:

stove top burner plates

,

gas stove burner plates



1. Description

Cordierite infrared honeycomb ceramic burner plate has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating condition.

The gas combustion is occurred inside the holes of the ceramic combustion plate; and the heat energy is radiated efficiently in the means of ultra-red rays. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

Our infrared ceramic burner plate is high heat transfer plate, it can increase burning efficiency.



2. Size

MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
φ50*13mm
φ66*13mm
φ80*13mm
φ140*13mm
φ107*13mm
φ136*13mm
φ172*13mm
100*44*13mm
100*60*13mm
160*60*13mm
100*70*13mm
135*80*13mm
132*92*13mm
135*92*13mm
140*95*13mm
155*95*13mm
140*100*13mm
135*60*13mm
88*62*13mm
134*94*13mm

3. Specification
Materials
Cordierite
Water absorption (%)
≥ 50.4
Porosity (%)
≥ 61
Specific gravity (g/cm3)
0.6-0.9
Thermal expansion coefficient (10-6/K)
1.5-3
Temperature softening (°C)
>1200
Surface burning temperature (°C)
1000-1200



WE HAVE PROFESSIONAL DETECTING EQUIPMENTWe are aimed to improve R&D and production process and equipment. Moreover, we cooperate with famous university such like Liaoning University of Science and Technology, Beijing University of Science and Technology. We will receive latest research from them.



We promise:
- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.



4. Package

We use carton box and plywood box to pack infrared honeycomb ceramic burner plate.We have professional logistic company, they can deliver to any port in the world and they can offer very good price.

We export infrared ceramic burner plate to many coutries,such as KOREA, GERMANY, AUSTRALIA, THAILAND, CAMBODIA,ITALY. RUSSIA, UK ,NEW ZEALAND and so on. So many customer come to our factory.They say our factory is good and our city is suitable for living.Although our factory has no long history,we are professional manufacturer.We can offer what customer need. That is why customer trust us.
