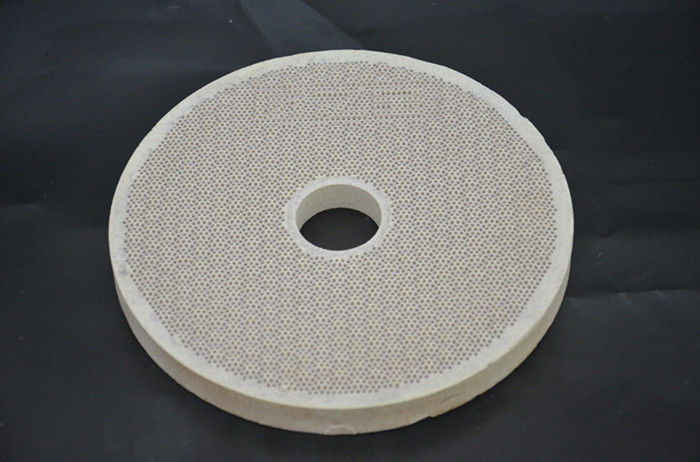

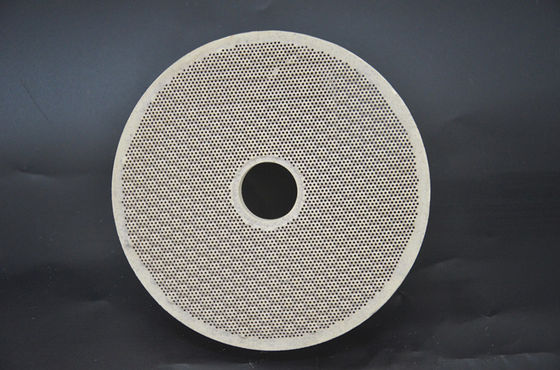

White Round Ceramic Burner Plate Infrared Wear Risistance SGS Certification

White Round Ceramic Burner Plate Infrared Wear Risistance SGS Certification
White Round Ceramic Burner Plate Infrared Wear Risistance SGS Certification White Round Ceramic Burner Plate Infrared Wear Risistance SGS Certification

Large Image :  White Round Ceramic Burner Plate Infrared Wear Risistance SGS Certification

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTICB7
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: Western Union, MoneyGram,Paypal, T/T, L/C
Supply Ability: 10000PCS/MONTH

White Round Ceramic Burner Plate Infrared Wear Risistance SGS Certification

Description
Name: Latest Style High Quality Cordierite Infrared Honeycomb Ceramic Burner Plate Material: Cordierite
Size: As Request Density: 2.0g/cm3
Type: Ceramic Plate MOQ: 1000PCS
High Light:

stove top burner plates

,

gas stove burner plates

1. Description

Cordierite infrared honeycomb ceramic burner plate has an important application in the field of gas heating for technical ceramics. To improve the efficiency of heat exchange, radiation gas heaters should give out very little convection heat, and the wave length of radiation has to be in the infrared range. The gas flows through many parallel holes to the largest possible surface area for complete combustion.
Our developed Cordierite material has good resistance against mechanical and thermal shock under normal operating condition.

The gas combustion is occurred inside the holes of the ceramic combustion plate; and the heat energy is radiated efficiently in the means of ultra-red rays. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

Nowadays, we are aimed to make better products with better price for customer.



2Performance index

Item Index Specifications
Materials Cordierite We can provide you
the product by you desire.
Water absorption 50.4%
Open Porosity 61%
Specific gravity 0.6-0.9g/cm3
Thermal expansion coeffecient 1.5-3(×10-6K-1)
Temperature softening >1280°C
Cooking Surface Temperature 1000-1200°C
CO release ≤0.006%
NOx release ≤5ppm



3. Main Usage

1). Gas stove / cooker /Roaster

2). Gas room heater

3). Barbecue furnace

4). Industrial baking equipment
