Product Details:
|
| Al2O3 Content (%): | 1.34% | CaO Content (%):: | 0.34% |
|---|---|---|---|
| Working Temperature:: | 1400 | Bending Strength 1200℃:: | 280MPA |
| Size: | Customize | Shape: | Plate |
| Bulk Density: | 2.75g/cm3 | ||
| High Light: | Carbide Ceramic Kiln Plates,280 MPA Ceramic Kiln Plates,SIC Silicon Kiln Plates |
||
silicon carbide kiln plate
1.Chemical and Physical index of silicon carbide plate:
| Main Performance Index of Silicon Carbide(SiC) | ||
| Item | Unit | SiC |
| Purity | % | ≥90 |
| Density | g/cm3 | 2.75 |
| Shore Hardness | HS | 110-125 |
| Elastic Modulus | Mpa | 4.12x105 |
| Poisson Ratio | 0.15 | |
| Tensile Strength | Mpa | 2.75 x102 |
| Bending Strength | Mpa | 4.41 x102 |
| Compression Strength | Mpa | 2.94 x103 |
| Thermal Conductivity | W/m.k | 141 (W/m.k) |
| Coefficient ofThermal Expansion | l/ºC | 4.3x10-6 |
| Heat Resistance | 1600C | |
| Thermal Impact Coefficient | cal/cm.sec | 46.5 |
| Acid Resistance | 5 times higher than the usual TC |
|
2. Description
Taking silicon carbide as the main material and adding expansion agent and anti oxidant, SIC silicon carbide ceramic kiln plates or slabs for household porcelain firing have very high load softening temperature and excellent anti oxidative effect through vibration supported uniaxial press compaction and high temperature firing. It was originally used as an alternative to conventional bonded SiC materials, but it shows the long term stability comparable to RSiC and NSiC with lower cost.
3.Property:
Good thermal shock resistance
Good resistance against corrosion and oxdiation
Good mechanical strength at high temperature
Excellent thermal and electric conductivity
Long service life and energy saving
Environmental friendly
Other recommendations
Reaction Bonded SiC (SiSiC)
Recrystallizde SiC (RSiC)
Nitride Bonded SiC (NSiC)

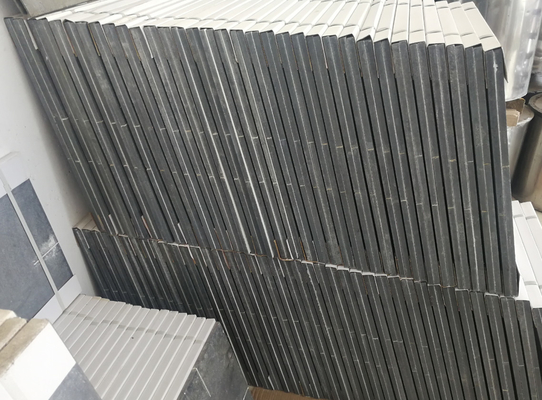

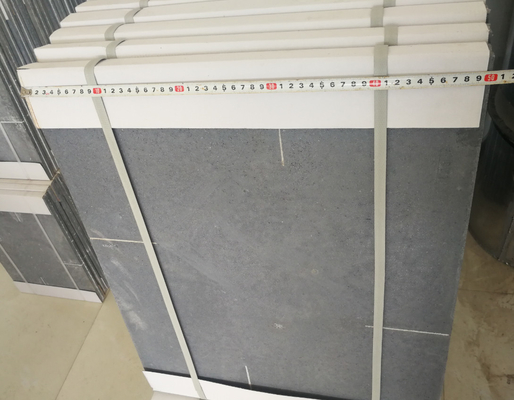

Shapes of SIC silicon carbide ceramic kiln plates or slabs for household porcelain firing
Batts, setter plate, pusher plate, setter slab, sagger,muffle board,support shelves and other special shaped products
Remark: sizes and shape are available upon requests.
