Customized Cordierite Kiln Posts , Refractory Kiln Shelves For Tunnel Kiln

Customized Cordierite Kiln Posts , Refractory Kiln Shelves For Tunnel Kiln
Customized Cordierite Kiln Posts , Refractory Kiln Shelves For Tunnel Kiln

Large Image :  Customized Cordierite Kiln Posts , Refractory Kiln Shelves For Tunnel Kiln

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO
Model Number: KTRKF6
Payment & Shipping Terms:
Minimum Order Quantity: 300 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX AND PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 10000PCS/MONTH

Customized Cordierite Kiln Posts , Refractory Kiln Shelves For Tunnel Kiln

Description
Features: Thermal Shock Resistance Density: 2.0g/cm3
Material: Cordierite Size: Customize
Color: Yellow Using Temperature: 1280℃
High Light:

alumina ceramic disc

,

high alumina kiln shelves

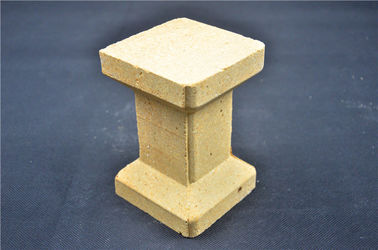

Refractory kiln furniture High temperature kiln use Cordierite kiln post







1. Product Description

Cordierite material has excellent thermal shock resistance, good strength and can be formed by pressing, extruding, casting and vibrating into complex shapes. Cordierite mullite kiln furniture is widely used in porcelain, heavy clay, glass panel, powder metallurgy, magnetic materials, green energy, food, glass, abrasives, iron and steel, mining and aerospace engineering.
Besides its use as kiln furniture, it is also extensively used in kiln structures and kiln car system, where it is combined with ceramic fiber to achieve the aims of improving fuel efficiency and avoiding contamination.



We also have cordierite batts
Extruded Batts
Extruded batts have holes running the length of the cross section and are manufactured using high pressure vacuum extrusion. They are used mainly in the sanitary ware and glass panel industries.
Characteristics:
Excellent energy savings
Lighter weight and higher load capacity
Excellent distortion resistance at high temperature
Suitable for faster firings with better bearing capacity for hot and cold extremes

Plain Batts
Plain batts are the most common type of primary kiln furniture, usually produced by semi-dry pressing, but can also be made by pressure-casting. There are extra large batt, extra thin batt, plain batt, perforated batt, grooved batt,trapezoid batt, round batt and special batt.

Plain Supports
Extruded Tubes
Fittings
Secondary Kiln Furniture
Sagger and Crucibles
Kiln Accessories


2. Product Specification

WE CAN FORMULATE ACCORDING TO YOUR DETAILED USING CONDITION.
Item
Unit
Index
Al2O3
%
50
SiO2
%
40
MgO
%
5
Fe2O3
%
<1
Cao
%
<2
Other
%
<2
Max. Service Temp.
1300
Refractoriness≥
1420
M.O.R at 20 ℃
Mpa
18
M.O.R at 1250℃
Mpa
17
Apparent Porosity
%
20-28
Specific heat at 20℃
Kg/kg.k
1.1
Bulk Density
g/cm3
2.0-2.2


3. Features

Cordierite is the best material for thermal shock resistance, if you heat up to 1000℃, then put it in cold water, it will not have any crack and bending, it can be used for long long times under 1280℃.

Some customer say using temperature is 1300℃, actually real using temperature is about 1200℃, cordierite can be used in such temperature.

Cordierite can be used in shuttle kiln, tunnel kiln, pusher kiln.



4. Application

Cordierite post is used in sanitary ceramic, ceramic insulaor, daliy ceramic and  so on.
