Product Details:
|

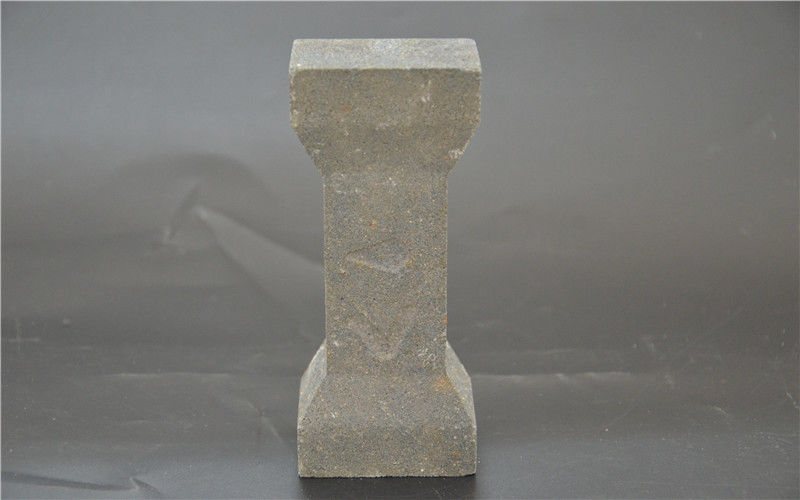

| Name: | High Thermal Conductivity Refractory Silicon Carbide Kiln Prop | Material: | Silicon Carbide |
|---|---|---|---|
| Compressive Strength: | >=1300 | Thermal Conductivity: | 13.5-14.5 |
| Apparent Porosity(%): | 7-8 | High Temperature Bending Strength At 1400C: | >55 |
| High Light: | kiln supports,kiln tools |
||
1. Description
In order to meet the requirements of high-grade ceramic kiln.We producted and researched new generation of high grade silicon carbide board and ceramic pillar.According to the customer feedback information,it has long-term use no deformation,cracks,slag.Special for high-grade sanitary,high-grade ceramic products,silicon carbide board and ceramic pillar has no color pollution phenomenon.
Our silicon carbide kiln shelves and ceramic pillar have ceramic pillar,ceramic plates,ceramic beams,ceramic fish plates.And our silicon carbide kiln shelves and ceramic pillar have many sic materials,such as oxide bonded silicon carbide,recrystallizde sic.
2.Performance Table
| Item | Unit | Data | |
| Density | g/cm3 | 2.70-2.75 | |
| Apparent Porosity | % | 7-8 | |
| Room temperature flexural strength | Mpa | >50 | |
| High temperature Bending Strength at 1400C | Mpa | >55 | |
| Cold Crushing Strength | Mpa | >90 | |
| Modulus of Rupture at room temperature | kg/cm2 | >=500 | |
| Modulus of Rupture at 1400C | kg/cm2 | >=550 | |
| compressive strength | kg/cm2 | >=1300 | |
| 2kg/cm2 Load softening temperatureT2 | C | >=1750 | |
| Max using Temperature | C | 1550 | |
| Thermal conductivity | Kca l/m.hr.C | 13.5-14.5 | |
| Thermal expansion coefficient at 1000C | % | 0.42-0.48 | |
|
Chemical Composition |
SiC | % | >=90% |
| Fe2O3 | % | <0.3% | |
| SiO2 | % |
<9.7% |
|
3. FAQ
When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us by +86-510-87997800 or +86 18351508304 .
Are your samples free or need cost?
Actually it depends on the products. For low value products, we will provide free spls, freight collect. But for some high value spls, it need spl cost and freight collect. Pls informed that all spls cost and freight cost can be returned back to you after order placed. You’re welcomed to email us for checking.
How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
Can you do the designs for us?
Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.
How long can I expect to get the sample?
It will be ready for delivery in 7-15 days. The samples will be sent to you by express. You can use your own express account or prepay us if you do not have an account.
