Product Details:
|
| Name: | Alumina Ceramic Substrate | Material: | 95% Alumina Ceramic |
|---|---|---|---|
| Length: | 200mm | Thickness: | 1mm |
| Width: | 200mm | Type: | Ceramic Plate |
| High Light: | porous ceramic disc,alumina ceramic tube |
||

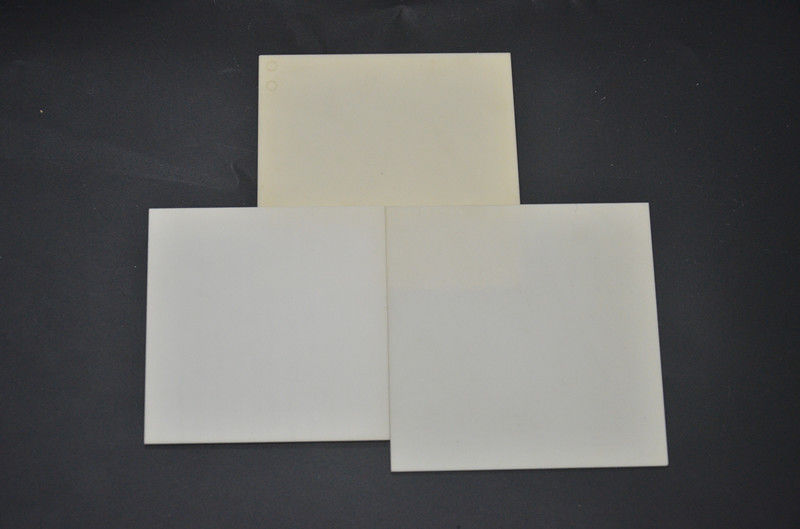

High Temperature resistance 95 % Alumina ceramic substrate 200*200*1mm
1. Description of Alumina ceramic substrate
Aluminum oxide, commonly referred to as alumina, possesses strong ionic interatomic bonding giving rise to it’s desirable material characteristics. It can exist in several crystalline phases which all revert to the most stable hexagonal alpha phase at elevated temperatures. This is the phase of particular interest for structural applications and the material available from Accuratus.
Alpha phase alumina is the strongest and stiffest of the oxide ceramics. Its high hardness, excellent dielectric properties, refractoriness and good thermal properties make it the material of choice for a wide range of applications.
High purity alumina is usable in both oxidizing and reducing atmospheres to 1925°C. Weight loss in vacuum ranges from 10–7 to 10–6 g/cm2.sec over a temperature range of 1700° to 2000°C. It resists attack by all gases except wet fluorine and is resistant to all common reagents except hydrofluoric acid and phosphoric acid. Elevated temperature attack occurs in the presence of alkali metal vapors particularly at lower purity levels.
The composition of the ceramic body can be changed to enhance particular desirable material characteristics. An example would be additions of chrome oxide or manganese oxide to improve hardness and change color. Other additions can be made to improve the ease and consistency of metal films fired to the ceramic for subsequent brazed and soldered assembly.
Electric appliance industry/Automotive industry/Mechanical industry
Engineering industry/Electrical heating element industry/LED Lighting Industry
We have professional equipment and we are very professional manufacturer.
When we produce alumina ceramic substrate, we use the best raw material of high pure alumina powder.
And we use dry press and injection moulding,cast moulding to mould alumina ceramic substrate.
|
Item
|
Unit
|
95% Alumina ceramic
|
99% Alumina ceramic
|
|
Bulk density
|
g/cm3
|
>3.6
|
3.89
|
|
Max use temperature
|
℃
|
1500
|
1700
|
|
Water absorbtion
|
%
|
0
|
0
|
|
Bending Strength
|
Mpa
|
364
|
450
|
|
Expansion (25-800°C)
|
(X10-6/°C)
|
7.6
|
8
|
|
Thermal Conductivity
|
(W/(m.R))
|
20
|
35
|
|
Dielectric Strength
|
(kv/mm)
|
11
|
12
|
|
Size
|
200*200*1mm
|
150*150*2mm
|
100*100*0.6mm
|
|
100*100*0.7mm
|
200*180*1.6mm
|
140*140*0.6mm
|
100*100*1.5mm
|
|
100*100*0.8mm
|
100*100*1.2mm
|
100*100*1.3mm
|
100*100*1mm
|
|
100*100*2mm
|
100*100*3mm
|
180*160*1.8mm
|
110*100*1.5mm
|
|
200*200*2mm
|
150*150*3mm
|
115*115*1.3mm
|
113*113*0.8mm
|
|
113*113*1.5mm
|
113*113*3mm
|
φ160*2mm
|
φ200*2mm
|
We have many size of alumina ceramic substrate, also we can customize according to your requirement.
We promise:
- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.
