25-35 W/mK Thermal Conductivity Aluminum Oxide Ceramic The Perfect Combination for Hard and White Products

Product Description:

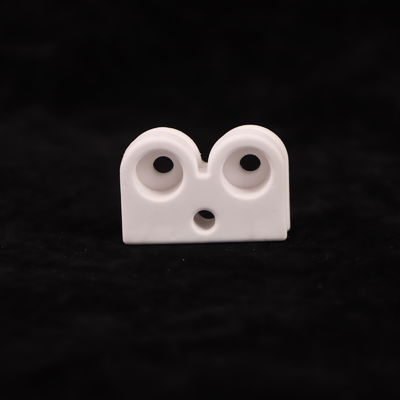

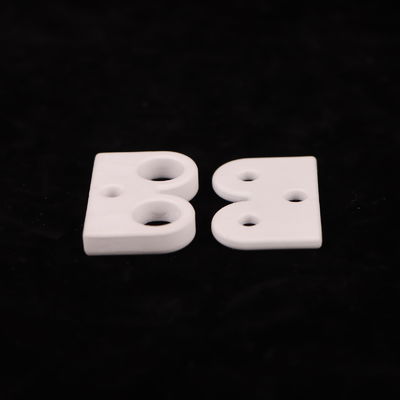

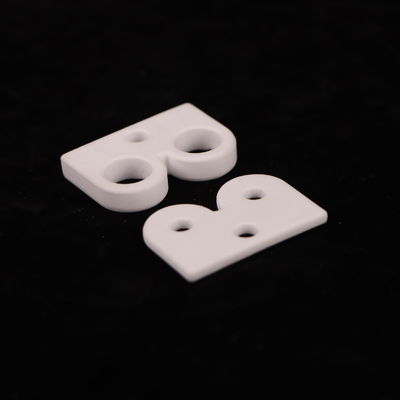

The 99% Alumina ceramic plate is a high-performance material known for its exceptional properties, making it a valuable choice for various industrial applications. This specific type of ceramic, also referred to as Aluminum Oxide Ceramic, stands out for its impressive Thermal Conductivity ranging from 25 to 35 W/mK.

One of the key features of the Aluminum Oxide Ceramic product is its remarkable Compressive Strength, exceeding 3000 MPa. This attribute makes it a reliable and durable option for applications requiring high resistance to pressure and stress.

The material composition of the Aluminum Oxide Ceramic consists primarily of Alumina ceramic, which is renowned for its superior quality and performance. With a Young's Modulus falling within the range of 200 to 400 GPa, this ceramic material exhibits excellent stiffness and elasticity, making it suitable for demanding mechanical applications.

Another significant characteristic of the Aluminum Oxide Ceramic is its Dielectric Constant of 9.6, highlighting its exceptional electrical insulation properties. This feature makes it a preferred choice for applications where electrical insulation is crucial.

In summary, the Aluminum Oxide Ceramic, also known as 99% Alumina ceramic plate, offers a combination of outstanding Thermal Conductivity, high Compressive Strength, premium Alumina ceramic material, impressive Young's Modulus, and excellent Dielectric Constant. These properties make it a versatile and reliable option for a wide range of industrial and technical applications where high-performance ceramic materials are required.

Features:

• Product Name: Aluminum Oxide Ceramic
• Insulation Resistance: >10^12 Ohm-cm
• Material: Aluminum Oxide Ceramic
• Poisson's Ratio: 0.25
• Thermal Conductivity: 25-35 W/mK
• Young's Modulus: 200-400 GPa

Technical Parameters:

Applications:

KAMTAI Aluminum Oxide Ceramic, model KT-YHL, is a versatile product that finds application in various occasions and scenarios due to its excellent attributes. Produced in CHINA and certified with ISO 9001, this product is a top choice for industries requiring high-quality ceramic components.

One of the key application areas for the Aluminum Oxide Ceramic is as an alumina ceramic substrate. With its high thermal conductivity ranging from 25-35 W/mK, it is ideal for use in electronic devices, LED lighting, and power modules where efficient heat dissipation is critical.

Moreover, the 99% Alumina ceramic plate variation of this product is well-suited for applications requiring superior mechanical strength. With a tensile strength of 200-400 MPa and a hardness of 9 Mohs, it is commonly used in wear-resistant components, cutting tools, and automotive parts.

For scenarios that demand a balance between thermal performance and cost-effectiveness, the 95% Alumina ceramic plate option is a popular choice. Its insulation resistance exceeding 10^12 Ohm-cm makes it suitable for high-voltage applications such as insulators, bushings, and electrical components.

The Aluminum Oxide Ceramic from KAMTAI comes with a minimum order quantity of 300PCS, offered at a negotiable price. Each unit is carefully packaged in a wooden box for safe transportation, with a delivery time of 30 days after payment confirmation. Payment terms are flexible, with TT being accepted, and the supply ability is set at 500,000PCS per month.

Customization:

Product Customization Services for the Aluminum Oxide Ceramic product:

Brand Name: KAMTAI

Model Number: KT-YHL

Place of Origin: CHINA

Certification: ISO 9001

Minimum Order Quantity: 300PCS

Price: NEGOTIATE

Packaging Details: WOODEN BOX

Delivery Time: 30 DAYS AFTER PAYMENT

Payment Terms: TT

Supply Ability: 500000PCS/MONTH

Hardness: 9 Mohs

Dielectric Constant: 9.6

Color: White

Dielectric Strength: 18-20 KV/mm

Thermal Conductivity: 25-35 W/mK
