Product Details:
|
| Material: | Corundum Mullite | Dimension: | 200*140*30mm |
|---|---|---|---|
| Shape: | Shield | Package: | Plywood Box |
| Density: | 2.5g/cm3 | Using Temperature: | 1500 ℃ |
| Color: | White | Sample: | Freely If 1 Pc |
| High Light: | Refractory Corundum Mullite Setter Plate,Mullite Setter Plate For Firing,200*140*30 mm Mullite Kiln Setter Plate |
||

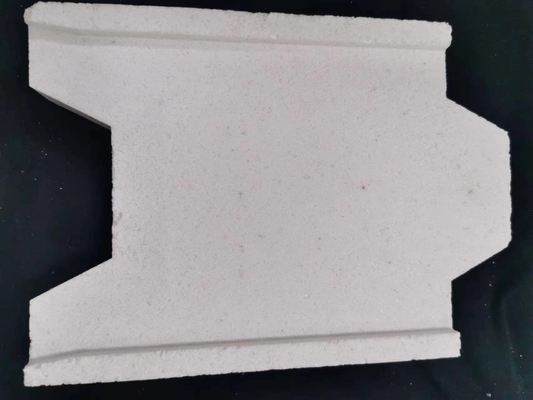

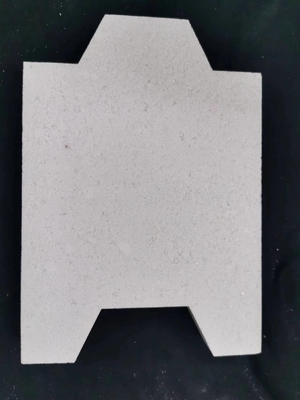

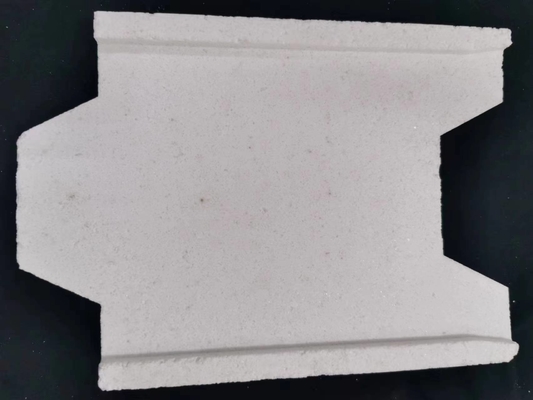

high heat resistance Refractory Corundum mullite setter plate
1. Description
Corundum Mullite, a naturally occurring mineral, composed of approximately 65-75% Alumina and 25-30% silica with small amounts of other minerals dry pressing under high pressure.
Corundum mullite setter plate is widely used in magentic materials and powder metallurgy and ceramic industry .It plays roles of kiln shelf in high temperature furnace.
Our main customer use it to fire Mn-Zn ferrite core and Ni-Zn ferrite core.
If you are customer who need corundum mullite setter plate in these two industry , our corundum mullite setter plate will be your best option.It has high strength and high density than common mullite setter plate .It can bear high temperature thermal shock and high load deformation resistance.
2. Specification
| Item | KT-MU1 | KT-MU2 |
| Al2O3 | 75% | 65% |
| SiO2 | 23% | 33% |
| Volume density (g/cm3) | 2.70 | 2.65 |
| Show porosity (%) | 14.5 | 17 |
| Breaking strength at RT | 13 Mpa | 11Mpa |
| AT 1400 ℃ | 9Mpa | 7Mpa |
| Compressive strength | 70Mpa | 65Mpa |
We promise:
- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.
Why Choose us ?
We accept CUSTOMIZATION as different customers in different markets always have different needs and wants. MOQ is varied based on the specific item. From the product itself, the package to the marketing catelogue we can provide according to your demands.
We know well of what the customers are feeling when waiting for the order after deposit confirmed. Here World Chemical Co., Ltd. provides Live Broadcast Service to inform you of every step in the production. There will be specially-assigned person mailing you situations for raw materials buying, production starting, finished goods packaging, booking cargo space and etc.
