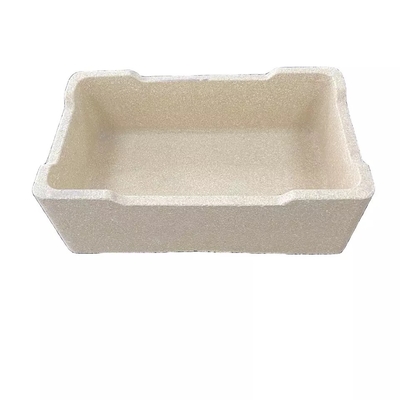

High Load Mullite Refractory Plate Refractory Kiln Shelves For Ceramic Insulator

High Load Mullite Refractory Plate Refractory Kiln Shelves For Ceramic Insulator
High Load Mullite Refractory Plate Refractory Kiln Shelves For Ceramic Insulator

Large Image :  High Load Mullite Refractory Plate Refractory Kiln Shelves For Ceramic Insulator

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTMK14
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,PAYPAL
Supply Ability: 5000PCS PER MONTH

High Load Mullite Refractory Plate Refractory Kiln Shelves For Ceramic Insulator

Description
Compressive Strength: 65Mpa Shape: Plate
Density: 2.4-2.7g/cm3 Show Porosity (%): 17
SiO2: 23-33% Feature: High Strength
High Light:

High Load Refractory Plate

,

Mullite Refractory Plate

,

Ceramic Insulator Refractory Kiln Shelves

Excellent thermal shock resistance Refractory Mullite plate for sale



1. Product Description

Mullilte plate  is widely used in magentic materials and powder metallurgy and ceramic industry .It plays roles of kiln shelf  in high temperature furnace.

Our main customer use it to fire Mn-Zn ferrite core and Ni-Zn ferrite core.

If you are customer who need mullite push plate in these two industry , our mullite plate  will be your best option.It has high strength and high density than common mullite plate.It can bear high temperature thermal shock and high load deformation resistance.



2. Technical Parameters

Item KT-MU1 KT-MU2
Al2O3 75% 65%
SiO2 23% 33%
Volume density (g/cm3) 2.70 2.65
Show porosity (%) 14.5 17
Breaking strength at RT 13 Mpa 11Mpa
AT 1400 ℃ 9Mpa 7Mpa
Compressive strength 70Mpa 65Mpa




3. Details
Excellent energy savings
Lighter weight and higher load capacity
Excellent distortion resistance at high temperature
Suitable for faster firings with better bearing capacity for hot and cold extremes

Kiln shelves should be stored standing up on their edges. Storing them flat makes it more possible for them to break or cracks. Keep shelve dry. If they do get wet (e.g., after applying kiln wash), heat them slowly and soak for a few hours at 300° F.

Selecting the right kiln shelves for your kiln use and application is important. Selecting the wrong shelves can be more expensive than you need or cutting corners can end up with ruined shelves after only few firings. When selecting shelves you will have three important choices: a) the material from which the kiln shelves are made, b) the thickness of the shelf, c) half size or full size shelves. To select the right kiln shelves you need to take into account your kiln type and style, firing temperature, firing type (e.g., oxidation, reduction, raku), glazing style used, firing frequency, ware weight and your strength. Once kiln shelves are selected and used, regular maintenance is required (kiln wash and reversing shelves).
