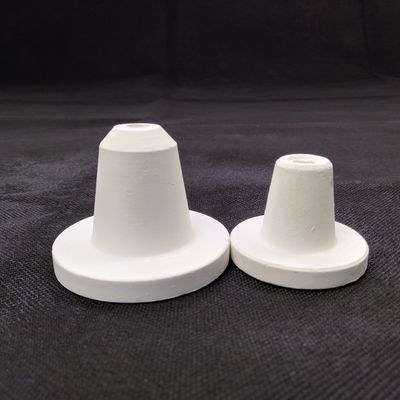

Refractory Ceramic CupLock Anchors For Insulation Lining Access Load Bearing

$Refractory Ceramic CupLock Anchors For Insulation Lining Access Load Bearing$

$Refractory Ceramic CupLock Anchors For Insulation Lining Access Load Bearing$

Large Image : Refractory Ceramic CupLock Anchors For Insulation Lining Access Load Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	KAMTAI
Certification:	SGS
Model Number:	KTcup02

Payment & Shipping Terms:

Minimum Order Quantity:	2000PCS
Price:	Negotiable
Packaging Details:	CARTON BOX AND PLYWOOD PALLET
Delivery Time:	25 DAYS AFTER PAYMENT
Payment Terms:	L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	10000PCS/ MONTH

Contact Now

Refractory Ceramic CupLock Anchors For Insulation Lining Access Load Bearing

Description

Advantage::	Good Wear Resistance And Resistance To Creep	Application:	Kiln Furniture,roller Kiln,ovens Or Kilns
Feature::	Exceptional Strength,Moisture Resistance	Al2O3:	70%
Usage:	Lock Stainless Steel Studs,ceramic Fiber Linings	MOQ:	2000PCS
Place Of Origin:	CHINA	Material:	Aluminum Silicate
High Light:	Ceramic CupLock Anchors , Refractory Cup Lock Anchors , Insulation Lining Cuplock Anchors

Mullite ceramic cuplock

Our company adopts gravity dry pressing, hot pressing and other manufacturing processes to produce cordierite-mullite, mullite,mullite-corundum-based burn-in board,moving board, shed board, push plate, pallet, sintering boat,sagger ect kiln furniture.

Mullite ceramic (Pythagoras):

Mullite is a good, low cost refractory ceramic with a nominal composition of 3Al2O3•2SiO2. It has excellent high temperature properties with improved thermal shock and thermal stress resistance owing to the low thermal expansion, good strength and interlocking grain structure.

Physical Properties:
*Good thermal shock and stress resistance
*Low thermal conductivity
*Good strength
*Wear resistant
*Usable to high temperatures

Applications:
Radiant heating tubes
Furnace liners
Electrical insulators

Specification

	Unit
Content of al2o3	%	>70%
Density	g/cm3	2.50-2.6
Water absorption	%	8-9
Bending strength	MPa	55-60
Thermal Expansion coefficient(20-1000C)	1/K	6*10-6
Young modulus of elasticity	GPa	80
Using limit	C	1350
Resistance to temperature change performance		Very good
