Product Details:
|
| UsingUsing Temperature: | 1400℃ | Sic: | 90% |
|---|---|---|---|
| SIZE: | CUSTOMIZED | COLOR: | BLACK |
| Density: | 2.75g/cm3 | SiC Content (%): | 90 |
| PLACE OF ORIGIN: | JIANGSU | Raw Material: | Silicon Carbide Powder |
| High Light: | Refractory Silicon Carbide Plate,Heat Resistant Sic Plate,High Temperature Refractory Carbide Plate |
||

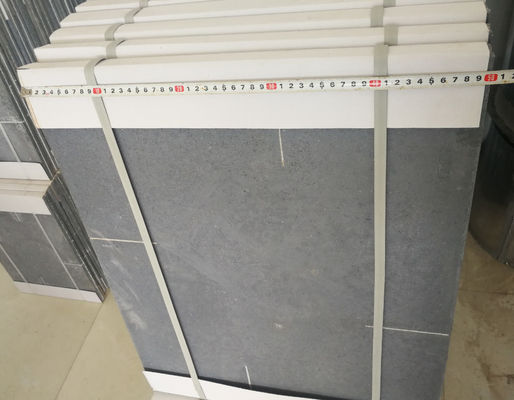

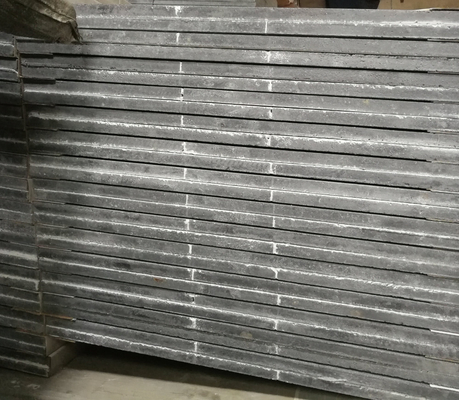

Advanced Refractory kiln furniture pottery use Silicon carbide PLATE
1. Description
silicon carbide ceramics have the excellent properties of high bending strength following rising temperature, thermal shock resistance, oxidization resistance, corrosion resistance.
SiC ceramics can be made such as beams, batts, rollers, thermocouple protection tubes,burner nozzles, other special shaped structural parts and so on.
SiC is widely used in shuttle kilns, tunnel kilns, roller kilns and other fuel industry kilns.
Kiln wash is a layer of material between your pots and kiln PLATE protecting your kiln shelves during glaze firing preventing glazes from sticking to your shelves. Unglazed pots can stick to the kiln shelf if the clay body vitrifies. Kiln wash is made of silica sand, alumina hydrate and kaolin. You can mix your own kiln wash or purchase.
Glaze comes in contact with the kiln shelf when something unexpected occurred (e.g., running glaze, tipped over pot) during the glaze firing even if you wiped glaze off the bottom or used stilts. If kiln wash was not used in the above possible scenarios, your pot will stick to the shelf and break trying to remove it . You will have to grind the glaze off the shelf’s surface, remaining glaze soaked into the shelves will continue to erode the kiln shelf.
We also recommend applying kiln wash to the brick on the bottom of the kiln to prevent from glaze drip damaging the soft brick.
2. Characteristics
Good thermal conductivity
Good high temperature strength
Wear resistant and erosion resistant
Good thermal shock resistance
Good corrosion resistance
Good oxidation resistance
3.Usage:
1.) Side wall Electrolyzer cell chemical-industrial reaction pot.
2.) Used as Kiln shed board, slide push board, sagger, Tuyere combined bricks.
3.) Used in blast furnace belly, Bosh and lower stack, cooling wall, rubbish burning furnace and boiler.
4. Specifications
| Chemical Composition SIC ≥ | % | 90 |
| Max. Service Temp | ºC | 1400 |
| Refractoriness ≥ | SK | 39 |
| 2kg/cm2 Refractoriness under load T2 ≥ | ºC | 1790 |
| Modulus of Rupturt at room temp ≥ | Kg/cm2 | 500 |
| Modulus of Rupture at 1400ºC ≥ | Kg/cm2 | 550 |
| Compressive strenght ≥ | Kg/cm2 | 1300 |
| Thermal Expansion at 1000ºC | % | 0.42-0.48 |
| Apparent Porosity | % | ≤20 |
| Bulk Density | g/cm3 | 2.55-2.7 |
| Thermal Conductivity at 1000ºC | Kcal/m.hr.ºC | 13.5-14.5 |
