Refractory Corundum Mullite Setter Plate High Temperature

Refractory Corundum Mullite Setter Plate High Temperature
Refractory Corundum Mullite Setter Plate High Temperature Refractory Corundum Mullite Setter Plate High Temperature Refractory Corundum Mullite Setter Plate High Temperature

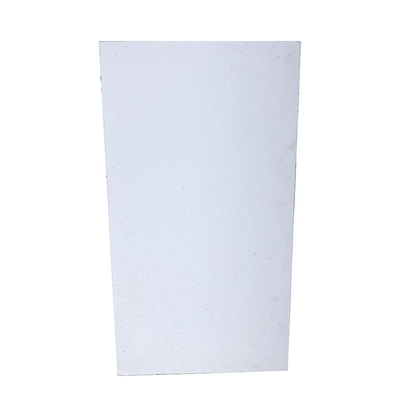

Large Image :  Refractory Corundum Mullite Setter Plate High Temperature

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO
Model Number: KTGANGYU
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX AND PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 3000PCS/MONTH

Refractory Corundum Mullite Setter Plate High Temperature

Description
Type: Setter Plate Color: White
Dimension: 680*375*35mm Using Temperature: 1400-1600℃
Shape: Plate Package: Wooden Box
High Light:

Corundum Mullite Setter Plate

,

High Temperature Corundum Setter Plate

,

Refractory Corundum Setter Plate

Large size Corundum mullite setter plate 680*375*35mm



1. Description

Corundum  setter  plate is widely  used in high temperature kiln ,.When you sinter magnetic material (like soft ferrite core ), it will be necessary.

Our setter  plate is widely used in high temperature furnace,it has long using life and high strength.



2. Advantages

1. It has excellent thermal stability and distortion resistance at high temperature.

2. Superior corrosion and oxidation resistance.

3. Low apparent porosity and thermal expansion.

4. Outstanding thermal shock resistance.

5. Excellent thermal conductivity





3. Index

property Corundum
Al2O3 % ≥ 92
Fe2O3 % ≤ 0.5
density g/cm3 ≥3.7
Thermal expansion 1000 C 7.8
Refractoriness C ≥ 1850
Thermal stability 1100 C--(cold water)times ≥ 5
Working temperature

≤ 1500
