Product Details:
|
| Feature: | High Temperature Resistance | Size: | Customize |
|---|---|---|---|
| Color: | Ivory Yellow | Package: | Wooden Box |
| Shape: | Tube | Density: | 3.9g/cm3 |
| High Light: | refractory alumina tube,insulation alumina tube,3.9g/cm3 density alumina tube |
||

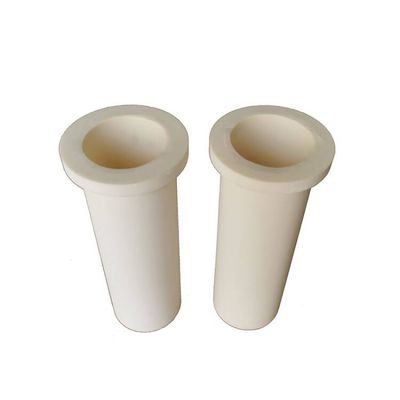

99% Alumina Ceramic TUBE
1. Alumina ceramic
2. Technical data :
| Product Name | 99 Al2O3 Aluminum oxide pipe alumina ceramic tube | |||||
| Index | Unit | 85 % Al2O3 | 95 % Al2O3 | 99 % Al2O3 | 99.5 % Al2O3 | |
| Density | g/cm3 | 3.3 | 3.65 | 3.8 | 3.9 | |
| Water Absorption | % | <0.1 | <0.1 | 0 | 0 | |
| Sintered Temperature | ℃ | 1620 | 1650 | 1800 | 1800 | |
| Hardness | Mohs | 7 | 9 | 9 | 9 | |
| Bending Strength(20℃)) | Mpa | 200 | 300 | 340 | 360 | |
| Compressive Strength | Kgf/cm2 | 10000 | 25000 | 30000 | 30000 | |
| Long Time Working Temperature | ℃ | 1350 | 1400 | 1600 | 1650 | |
| Max. Working Temperature | ℃ | 1450 | 1600 | 1800 | 1800 | |
| Volume Resistivity | 20℃ | Ω. cm3 | >1013 | >1013 | >1013 | >1013 |
| 100℃ | 1012-1013 | 1012-1013 | 1012-1013 | 1012-1013 | ||
| 300℃ | >109 | >1010 | >1012 | >1012 |
||
3. Features
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed
