Product Details:
|
| Material: | Alumina Ceramic | Usage: | Wear-resisting Material |
|---|---|---|---|
| Color: | White | Shape: | Round |
| Density: | 3.75g/cm3 | Water Absorption: | 0 |
| Vickers Hardness: | 15 | Bending Strength: | 320MPA |
| High Light: | aluminum oxide ceramic disc,aluminum oxide ceramic 96%,320MPA aluminum oxide ceramic |
||

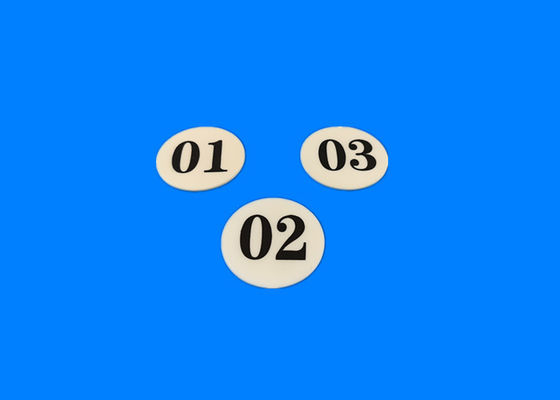

1.Product description of alumina ceramic disc
Ceramic disc are used in many electronic applications where a thin insulating layer of thermally stable material is required to conduct heat away from electronic components whilst electrically insulating them, and material is 96% alumina, zirconia, silicon nitride and aluminum nitride, All our substrates are produced by laser cutting and surface grinding.
All alumina ceramic disc could be customized according to your data requirements and drawings.
2. Features and advantage of alumina ceramic disc
1.Great mechanical strength
2.Low thermal conductivity
3.High heat resistance
4.High softening temperature
5.Small thermal expansion coefficient
6.Good cold-resistance heat-resistance
7.Resistance to acid and alkali corrosion
8.Long service life
alumina ceramic plate Chief technical parameters
| Property | Units | ||||
| Al2O3 Content | % | 96 | 98 | 99.5 | 99.7 |
| Density | g / cm3 | 3.70 | 3.80 | 3.90 | 3.92 |
| Color | - | White | White | Ivory | Ivory |
| Compressive Strength @ 25 C | Mpa | 2229 | 2091 | 2512 | 2350 |
| Tensile Strength @ 25 C | MPa | 200 | 200 | 248 | 252 |
| Flexural Strength @ 25 C | MPa | 331 | 276 | 324 | 320 |
| Elastic Modulus @ 25 C | GPa | 290 | 331 | 366 | 380 |
| Hardness : Knoop Rockwell | (Gpa) Kg/mm2 R45N |
(11.7) 1196 79 |
(12.5) 1276 77 |
(14) 1428 85 |
(15) 1510 90 |
| Thermal Conductivity @ 25 C | W / m-Deg K | 20.8 | 28.1 |
30.7 |
31.6 |
| Coefficient of Thermal Expansion @ 25-1000 C | 1 X 10-6 / Deg C |
7.9 | 8.5 | 8.1 | 8.0 |
| Specific Heat @ 25 C | cal / g / Deg C | .184 | .184 | .182 | .180 |
| Maximum Working Temp. | Deg C | 1650 | 1650 | 1700 | 1700 |
| VolumeResitivity @25C @700 C | ohm-cm ohm-cm |
1 X 10-13 1 X 10-8 |
1X 10-13 2.2 X 10-9 |
1 X 10-13 6 x 10-7 |
1 X 10-13 6 x 10-7 |
| Dielectric Strength (@Thickness) 100Mils |
ac volts per mil |
350 | 340 |
335 | 330 |
| Dielectric Constant 1Mhz @25C |
e' / eo | 8.6 | 9.4 | 9.7 | 10.0 |
| Dissipation Factor 1 Mhz @25C |
Tan Delta | .0004 |
.0003 |
.0003 |
.0002 |
4.Application of alumina ceramic disc
MGC: Machinable glass ceramic have the following applications:
a) Electrical or thermal insulator
b) Structural components
c) Semi-conductor processing
d) Electrical and opto-electronic equipment
e) Many other uses.
