High Heat Resistant Insulation Aluminum Oxide Ceramic Washer For Sealing

Large Image : High Heat Resistant Insulation Aluminum Oxide Ceramic Washer For Sealing

Product Details:

Place of Origin:	CHINA
Brand Name:	KAMTAI
Certification:	SGS
Model Number:	KTTCH

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Price:	Negotiable
Packaging Details:	CARTON BOX AND PLYWOOD PALLET
Delivery Time:	25 DAYS AFTER PAYMENT
Payment Terms:	L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	10000PCS/ MONTH

Contact Now

High Heat Resistant Insulation Aluminum Oxide Ceramic Washer For Sealing

Description

Name:	High Heat Resistant Insulation Alumina Ceramic Washer For Sealing	Package:	Carton Box
Density:	> 3.7g/cm3	Color:	Ivory White
Water Absorbtion:	0	Shape:	Round
Highlight:	porous alumina plate , alumina ceramic tube

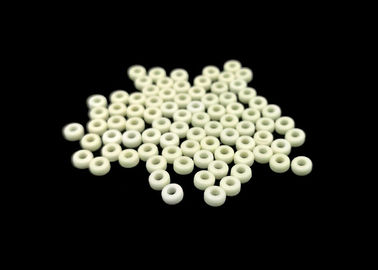

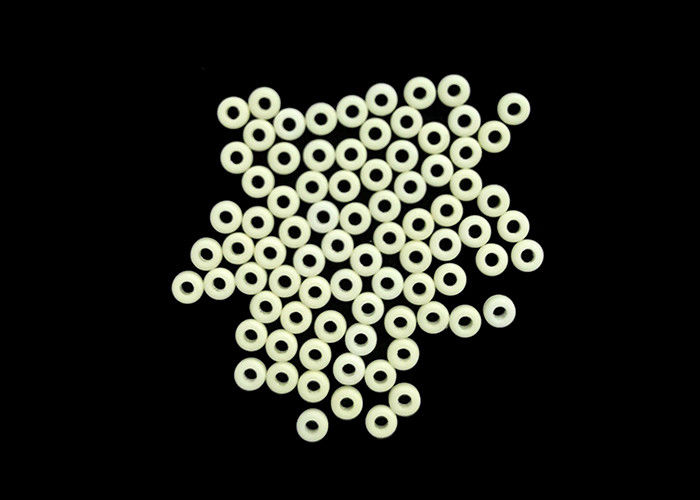

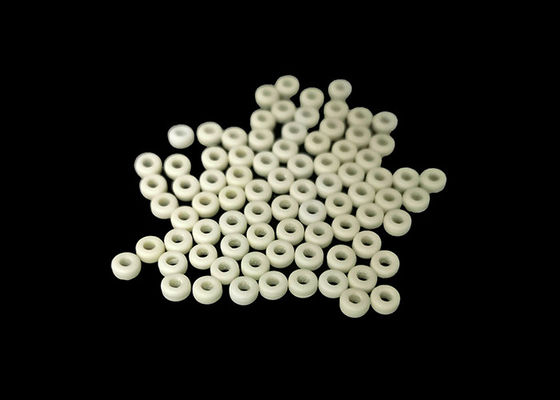

High heat resistant Insulation Alumina ceramic washer

1. Description

1. Name: Alumina Ceramic washer

2. Size: as customers' drawing

3. Al2O3 Content: 95%/99% alumina

4. Color: white or ivory

5. Working Temperature: 1500-1700 degree

6. Feature: high mechanical strength, good insulation&high wear resistant, etc.

7. Application: for refractory furnace or Kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings Or Other Mechanical Applications

2.Application of Alumina ceramic

Alumina ceramic are widely used in roller kilns for firing wall tile, floor tile, table ware, sitall tile, magnetic materials and electronic ceramic,etc.

2. Technical Parameter:

Item	Unit Symbol	95% Alumina Ceramics	99% Alumina Ceramics	99.7% Alumina Ceramics
Maximum Using Temperature	℃	1600	1700	1700
Water Absorption	%	0	0	0
Hardness	Gpa	≥85	≥89	≥89
Flexural Strength	MPa (psi x 103)	336	550	550
Compressive Strength	MPa (psi x 103)	2000	2500	2500
Fracture Toughness	Mpa	4~5	5.6	6
Thermal Conductivity	W/m °K	18-25	30	30.4
Thermal Shock Resistance	°C	220	180-220	180-220
Dielectricity Constant		9.4	9.8	9.8
Dielectric Strength	kV/mm	16	22	22

High Heat Resistant Insulation Aluminum Oxide Ceramic Washer For Sealing 0
