Product Details:
|
Product Name: | 0.5-2mm Thickness High Alumina Refractory Ceramic Lining Plates | Package: | Carton Box |
---|---|---|---|
Color: | White | Size: | Customize |
MOQ: | 1000PCS | Shape: | Rectangle , Square, Round |
High Light: | porous ceramic disc,alumina ceramic tube |

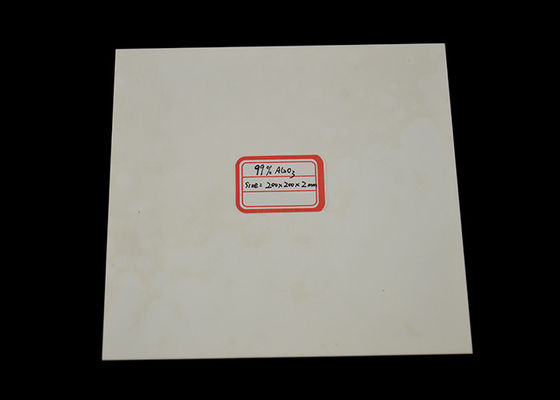

0.5-2 Mm Thickness High Aluminum Oxide Ceramic Refractory Lining Plates
1.Description
Alumina Ceramic plates are used in many electronic applications where a thin insulating layer of thermally stable material is required to conduct heat away from electronic components whilst electrically insulating them, and material is 95%, 96%, 99% alumina and zirconia.
Properties with excellent insulation, high mechanical strength, high thermal conductivity, low expansion coefficient, small dielectric constant, high-temperature resistance, excellent erosion and wear resistance, good quality in chemical shock heat and cold.
Product Name
|
Alumina Ceramic plate
|
Material
|
Alumina ceramic
|
Color
|
White or Black
|
Size
|
10-300mm
|
Thickness
|
0.3mm, 0.38mm, 0.5mm, 0.635mm,1mm, And According to drawings
|
Surface Roughness
|
Ra0.2
|
Lead time
|
10 - 20days
|
Shipping
|
Air Express (DHL/UPS/TNT/ FedEx)
|
2.Data Sheet
Performance
|
95 Grade
|
99 Grade
|
Bulk Density
|
≥3.7 g/cm3
|
≥3.8 g/cm3
|
Tensile Strength
(Nrmal Temperature)
|
≥160 mpa
|
≥190 mpa
|
Bending Strength
(Nrmal Temperature)
|
≥280 mpa
|
≥310 mpa
|
Modulus of Elasticity
|
3.5*10 kg/cm2
|
3.6*10 kg/cm2
|
Modulus of Friction
|
0.06-0.1
|
0.06-0.1
|
DC Breakdown Strength
|
≥25 kv/mm
|
≥30 kv/mm
|
Rigidity(HV)or(HRA)
|
1650 mpa or ≥75
|
1650 mpa or ≥80
|
1. High Thermal Expansion
2. Excellent Thermal Insulation; low thermal conductivity
3. High resistance to crack propagation,high fracture toughness
4. Ability to conduct oxygen ions
3.Process way
We can cusomize according to your detailed drawing
