High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature

High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature
High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature

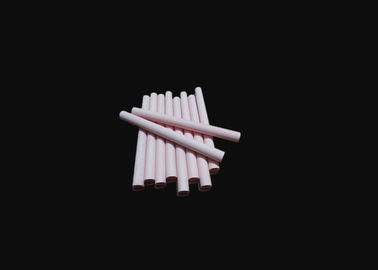

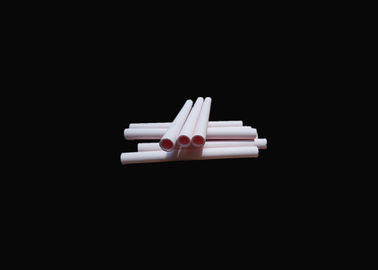

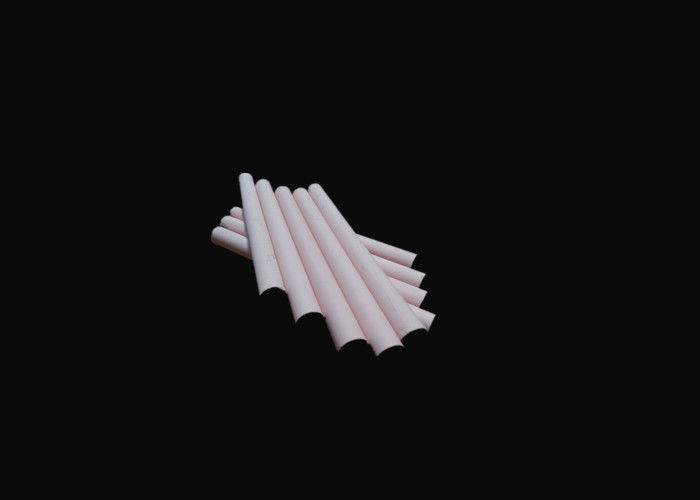

Large Image :  High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC14-33
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 20000PCS/ MONTH

High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature

Description
Name: High Purity Industrial Refractory 95% Alumina Ceramic Roller Size: As Your Request
Length: As Drawing Material: >95%
High Light:

porous ceramic disc

,

alumina ceramic tube



High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature





1.Alumina ceramic roller



The alumina tube/rod/bar is an ideal wear-resistance material for delivering the sand, mine, ash dregs and molten aluminium, has excellent conductivity, high machinery strength and high temperature resistance, can resist to the acid, high temperature, corrosion and static electricity. Al2O3 is the most important technical ceramic material. It is characterized by high hardness, high compressive strength and corrosion resistance even at high temperatures. Through the content of Al2O3 in the material,these properties can be tailored to the application of customer.







Features:

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

7) OEM, ODM and OBM are welcomed



We can supply the products according to customer's drawings, samples and performance requirement.



Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.



2.Technical Data



Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N
(11.7) 1196
79
(12.5) 1276
77
(14) 1428
85
(15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1



30.7

31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C
7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm
1 X 10-13
1 X 10-8
1X 10-13
2.2 X 10-9
1 X 10-13
6 x 10-7
1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils
ac volts
per mil
350
340
335 330
Dielectric Constant 1Mhz
@25C
e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C
Tan Delta .0004



.0003



.0003

.0002




High Purity Industrial Refractory Alumina Ceramic Roller Resistant To High Temperature 0
