High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance

High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance
High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance

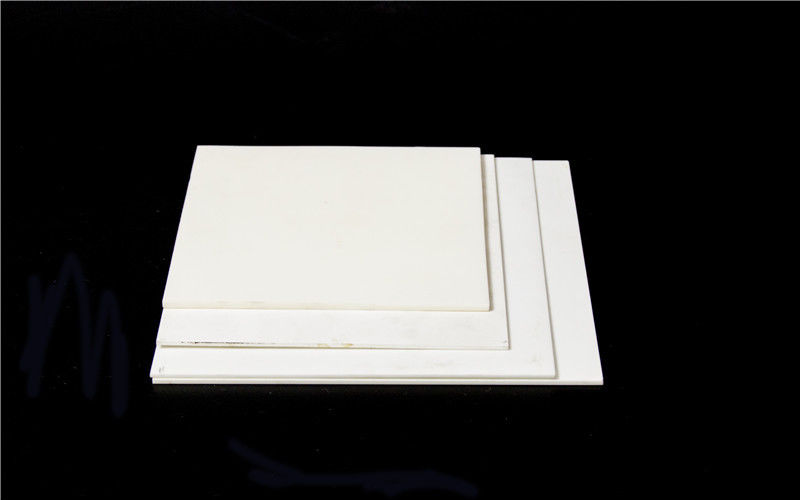

Large Image :  High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC14-32
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 20000PCS/ MONTH

High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance

Description
Name: High Performance Alumina Ceramic 99% Al2o3 Plate With Good Heat Resistance And Effective Cost Size: As Your Request
Surface: Polished Material: >95%
High Light:

porous alumina plate

,

alumina ceramic tube



High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance



1.Alumina ceramic plate



Alumina ceramic plate is  made of high technical ceramics belong to the category of furnace accessories. Due to their high resistance to corrosion and dimensional stability, they are primarily used by universities and research laboratories in high-temperature annealing and melting processes.



Alumina or aluminum oxide (Al2O3) in its various levels of purity is used more often than any other advanced ceramic material. Tigar Ceramic offers a wide range of material types with different property profiles that can be adjusted via a targeted matrix design.



This material has very high hardness, very high stiffness, very good corrosion resistance to chemicals at high temperature, and very high refractoriness or use temperature.



The applications for alumina advanced ceramics are heavy-duty forming tools, substrates and resistor cores in the electronics industry, tiles for wear protection and ballistics, thread guides in textile engineering, seal and regulator discs for valves, heat-sinks for lighting systems, protection tubes in thermal processes or catalyst carriers for the chemicals industry.



2.Technical Data



Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N
(11.7) 1196
79
(12.5) 1276
77
(14) 1428
85
(15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1



30.7

31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C
7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm
1 X 10-13
1 X 10-8
1X 10-13
2.2 X 10-9
1 X 10-13
6 x 10-7
1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils
ac volts
per mil
350
340
335 330
Dielectric Constant 1Mhz
@25C
e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C
Tan Delta .0004



.0003



.0003

.0002

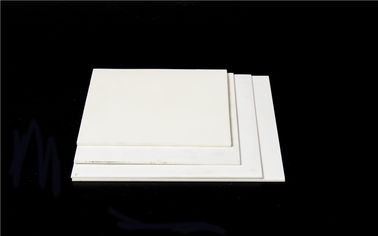

High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance 0

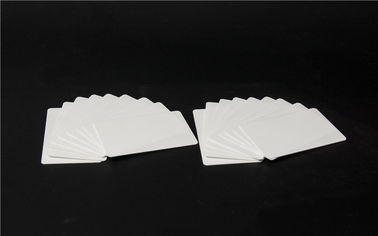

High Performance Aluminum Oxide Ceramic 99% Al2o3 Plate With Good Heat Resistance 1
