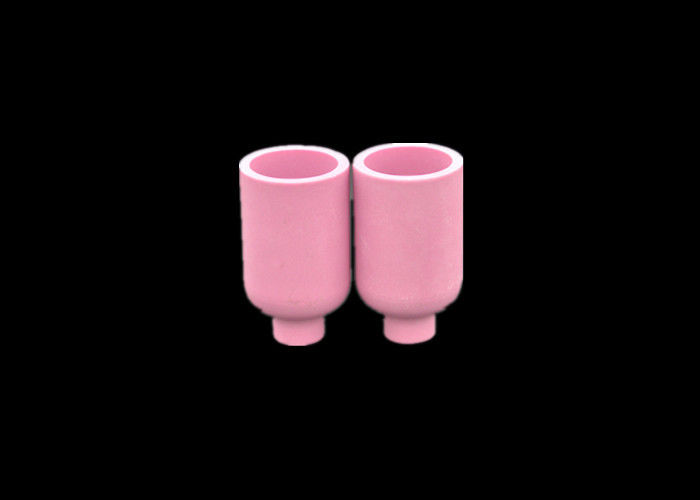

Insulating Pink 95% Alumina Ceramic Sand Blasting Nozzle High Temperature Resistance

Certification
China Yixing City Kam Tai Refractories Co.,ltd certification
China Yixing City Kam Tai Refractories Co.,ltd certification
Customer Reviews
This is the first time for our cooperation. They are indeed what we want. We look forward to working with you again in future.

—— Fred (USA)

Your ceramic tube is really good for our application, we will buy more in future.

—— Jessica Ferrara (Italy)

You are the best, your ceramic parts are perfect

—— Dalibor(Czech)

Our client satisfied with the Cordierite kiln shelf and sagger . But It would be better if the delivery time be shorter in our next order.

—— Van Nguyen (Viet Nam)

I hope you are fine and business is well. We recieved the perfect goods from you, your are the best.

—— Niko (UK)

I'm Online Chat Now

Insulating Pink 95% Alumina Ceramic Sand Blasting Nozzle High Temperature Resistance

Insulating Pink 95% Alumina Ceramic Sand Blasting Nozzle High Temperature Resistance
Insulating Pink 95% Alumina Ceramic Sand Blasting Nozzle High Temperature Resistance

Large Image :  Insulating Pink 95% Alumina Ceramic Sand Blasting Nozzle High Temperature Resistance

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTALP6-21
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 10000PCS/ MONTH

Insulating Pink 95% Alumina Ceramic Sand Blasting Nozzle High Temperature Resistance

Description
Name: Alumina Ceramic Sand Blasting Nozzle Density: >3.6g/cm3
Flexural Strength: >145Mpa Water Absorbtion: 0%
Application: Refractory, Industrial Ceramic Feature: High Wear Resistance
High Light:

porous ceramic disc

,

porous alumina plate



High mechanical strength high wear resistance alumina ceramic disc



1. Description

Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.



2.Main Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

7) OEM, ODM and OBM are welcomed

high temperature 99% alumina al2o3 ceramic nozzles



Typical Uses
Gas laser tubes
Wear pads
Seal rings
High temperature electrical insulators
High voltage insulators
Furnace liner tubes
Thread and wire guides
Electronic substrates
Ballistic armor
Abrasion resistant tube and elbow liners
Thermometry sensors
Laboratory instrument tubes and sample holders
Instrumentation parts for thermal property test machine

3.Data Sheet

Properties
Unit
Steatite ceramic
95% Al2O3
99% Al2O3
Zirconia Ceramic
Density
g/cm³
2.7
3.6
3.8
5.6
Flexural strength
Mpa
145
300
300
354
Hardness
Gpa
5.7
7
10.7
12.3
Elastic modulus
Gpa
120
275
320
205
Poissons ratio
-
0.21
0.22
0.22
0.30
Linear expansion coefficient
x 10-6/℃
7.9
7.1
7.8
9
Thermal conductivity
w/(m.k)
2.5
20
25
2.5



4.FAQ
1. How can I get an offer?
You can send your drawing with technology requirements and mark your purchase quantity.it is much better if you could offer the usage information about products, We will confirm the most suitable material and quote our best price to you in 24 hours.

2. Can you accept OEM & ODM?
Yes, we can produce the products according to your demand and drawing.

3. Can you provide free samples?
Yes, we can provide the sample for free, but the freight and mold fee are on your side.

4. What’s the lead-time for samples?
Within 3-7 days for bulk order, 10-15 days for OEM designs and shapes.

5. What’s your production Lead-time for bulk order?
Generally it takes 20-30 days and 25-35 days in peak season.

6. What are your payment terms?
In generally, we quote FOB Shanghai price, payment 30% deposit by T/T in advance, 70% balance paid within 7 days against shipping documents. It balances against Weston Union, L/C or Paypal etc. (Payment can be negotiated, kindly to contact with us)
