Product Details:
|
| Features: | High Strength And High Temperature Resistance | Name: | Textile Ceramic Shining Mirror Polish Ceramic Yarn Guide Eyelet |
|---|---|---|---|
| Material: | 95% And 99% | Usage: | Industry Ceramic |
| Shape: | Eye | Color: | Red And White |
| Highlight: | porous ceramic disc,porous alumina plate |
||

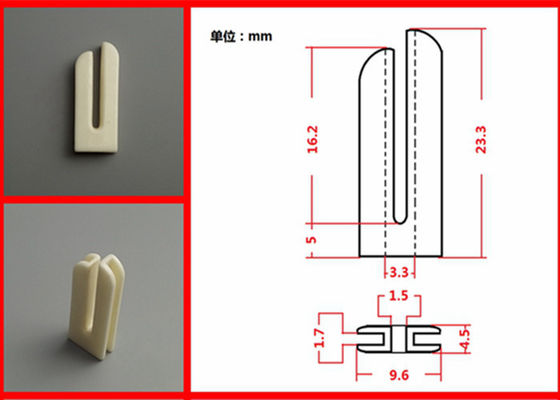

Textile Ceramic shining mirror polish ceramic Yarn Guide Eyelet
Alumina ceramic is the most mature of the engineering ceramics, offering excellent electrical insulation properties together with high hardness and good wear resistance,but relatively low strength and fracture toughness.Alumina ceramic is generally white but may also be pink or ivory.The color is derived from either the sintering additives or impurities in the raw materials.
The choice of Ceramic Eyelet for textile machinery has always been a critical part of cost effective fiber processing.With todays’ extremely fast production speeds, synthetic fibers and abrasive high-wearing technical yarns have led to ever-higher demands on ceramic guides.
Some of the most important properties of alumina Ceramic Eyelet are:
| Property | Units | ||||
| Al2O3 Content | % | 96 | 98 | 99.5 | 99.7 |
| Density | g / cm3 | 3.70 | 3.80 | 3.90 | 3.92 |
| Color | - | White | White | Ivory | Ivory |
| Compressive Strength @ 25 C | Mpa | 2229 | 2091 | 2512 | 2350 |
| Tensile Strength @ 25 C | MPa | 200 | 200 | 248 | 252 |
| Flexural Strength @ 25 C | MPa | 331 | 276 | 324 | 320 |
| Elastic Modulus @ 25 C | GPa | 290 | 331 | 366 | 380 |
| Hardness : Knoop Rockwell | (Gpa) Kg/mm2 R45N |
(11.7) 1196 79 |
(12.5) 1276 77 |
(14) 1428 85 |
(15) 1510 90 |
| Thermal Conductivity @ 25 C | W / m-Deg K | 20.8 | 28.1 |
30.7 |
31.6 |
| Coefficient of Thermal Expansion @ 25-1000 C | 1 X 10-6 / Deg C |
7.9 | 8.5 | 8.1 | 8.0 |
| Specific Heat @ 25 C | cal / g / Deg C | .184 | .184 | .182 | .180 |
| Maximum Working Temp. | Deg C | 1650 | 1650 | 1700 | 1700 |
| VolumeResitivity @25C @700 C | ohm-cm ohm-cm |
1 X 10-13 1 X 10-8 |
1X 10-13 2.2 X 10-9 |
1 X 10-13 6 x 10-7 |
1 X 10-13 6 x 10-7 |
| Dielectric Strength (@Thickness) 100Mils |
ac volts per mil |
350 | 340 |
335 | 330 |
| Dielectric Constant 1Mhz @25C |
e' / eo | 8.6 | 9.4 | 9.7 | 10.0 |
| Dissipation Factor 1 Mhz @25C |
Tan Delta | .0004 |
.0003 |
.0003 |
.0002 |
