High precision Aluminum Oxide Ceramic Eyelets Weaving Spare Parts

High precision Aluminum Oxide Ceramic Eyelets Weaving Spare Parts
High precision Aluminum Oxide Ceramic Eyelets Weaving Spare Parts

Large Image :  High precision Aluminum Oxide Ceramic Eyelets Weaving Spare Parts

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC9
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 10000PCS/ MONTH
Contact Now

High precision Aluminum Oxide Ceramic Eyelets Weaving Spare Parts

Description
Compressive Strength @ 25 C: ＞2091 Name: High-precision And High Polish Textile Ceramic Eyelets Weaving Spare Parts
Tensile Strength @ 25 C: ＞200 Flexural Strength @ 25 C: ＞276
Color: Red And White Shape: Ring
Highlight:

porous ceramic disc

,

alumina ceramic tube

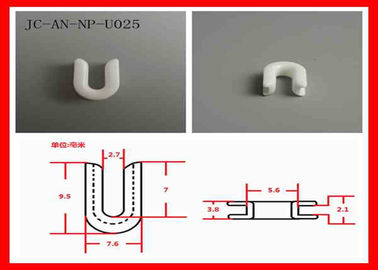

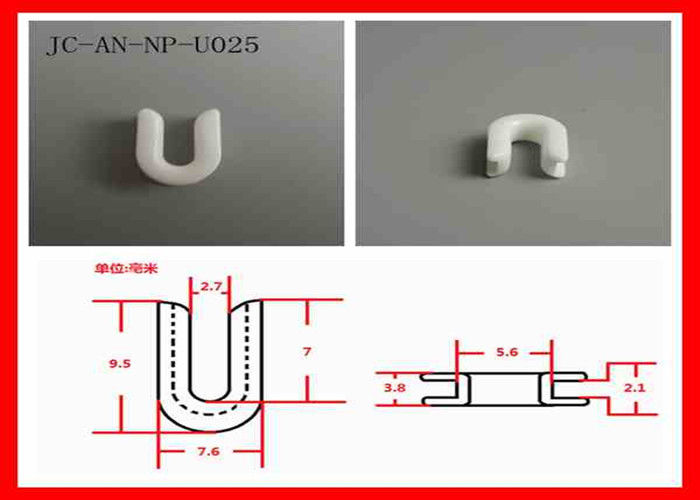

High-precision and High Polish Textile Ceramic Eyelets Weaving Spare Parts



The ceramic eyelet(ceramic ring) is the most commonly used component for the wire passing, and it is used in the wire passing position of the coil winding machine and the textile machinery. Normally it is used for less demanding occasions. The shape, finish and the hardness of materials must be improved in order to reduce

the friction because of the wire sliding in the surface of the ceramic rings. According to the requirements, the polish degree of porcelain eye can be regarded as roughness polishing, precision polishing and ultra-precision polishing.



Property Units
Al2O3 Content % 96 98 99.5 99.7
Density g / cm3 3.70 3.80 3.90 3.92
Color - White White Ivory Ivory
Compressive Strength @ 25 C Mpa 2229 2091 2512 2350
Tensile Strength @ 25 C MPa 200 200 248 252
Flexural Strength @ 25 C MPa 331 276 324 320
Elastic Modulus @ 25 C GPa 290 331 366 380
Hardness : Knoop Rockwell (Gpa) Kg/mm2
R45N		 (11.7) 1196
79		 (12.5) 1276
77		 (14) 1428
85		 (15) 1510 90
Thermal Conductivity @ 25 C W / m-Deg K 20.8 28.1



30.7

 31.6
Coefficient of Thermal Expansion @ 25-1000 C 1 X 10-6 /
Deg C		 7.9 8.5 8.1 8.0
Specific Heat @ 25 C cal / g / Deg C .184 .184 .182 .180
Maximum Working Temp. Deg C 1650 1650 1700 1700
VolumeResitivity @25C @700 C ohm-cm
ohm-cm		 1 X 10-13
1 X 10-8		 1X 10-13
2.2 X 10-9		 1 X 10-13
6 x 10-7		 1 X 10-13
6 x 10-7
Dielectric Strength
(@Thickness) 100Mils		 ac volts
per mil		 350
340		 335 330
Dielectric Constant 1Mhz
@25C		 e' / eo 8.6 9.4 9.7 10.0
Dissipation Factor 1 Mhz
@25C		 Tan Delta .0004



.0003



.0003

 .0002





High precision Aluminum Oxide Ceramic Eyelets Weaving Spare Parts 0
