Product Details:
|
| Model Number:: | 3.02g/cm3 | Shape:: | Rectangle |
|---|---|---|---|
| Material: | Silicon Carbide | Color: | Black |
| Density: | 3.02g/cm3 | Open Porosity:: | ＜0.1% |
| High Light: | silicon carbide tube,silicon carbide kiln furniture |
||
1. Sintering Theory
Silicon carbide beam is mainly used in the production of aluminum, copper and zinc , as the lining material of the molten pool and electrolytic bath (reduction bath).The side lining of the reduction bath is eroding by aluminum and cryolite (used as additive), but Si3N4 bonded SiC material could not be eroded by aluminum, and do not have chemical reaction with cryolite.So this kind of material is ideal for the lining bricks of the electrolytic bath.In particular this kind of bricks have the excellent properties of high strength, abrasive resistance and nonconductive, so the copolymer (Al2O3 and Cryolite). The copolymer likes protective film to protect the working lining and improve the service life of electrolytic bath of silicon carbide pipe.

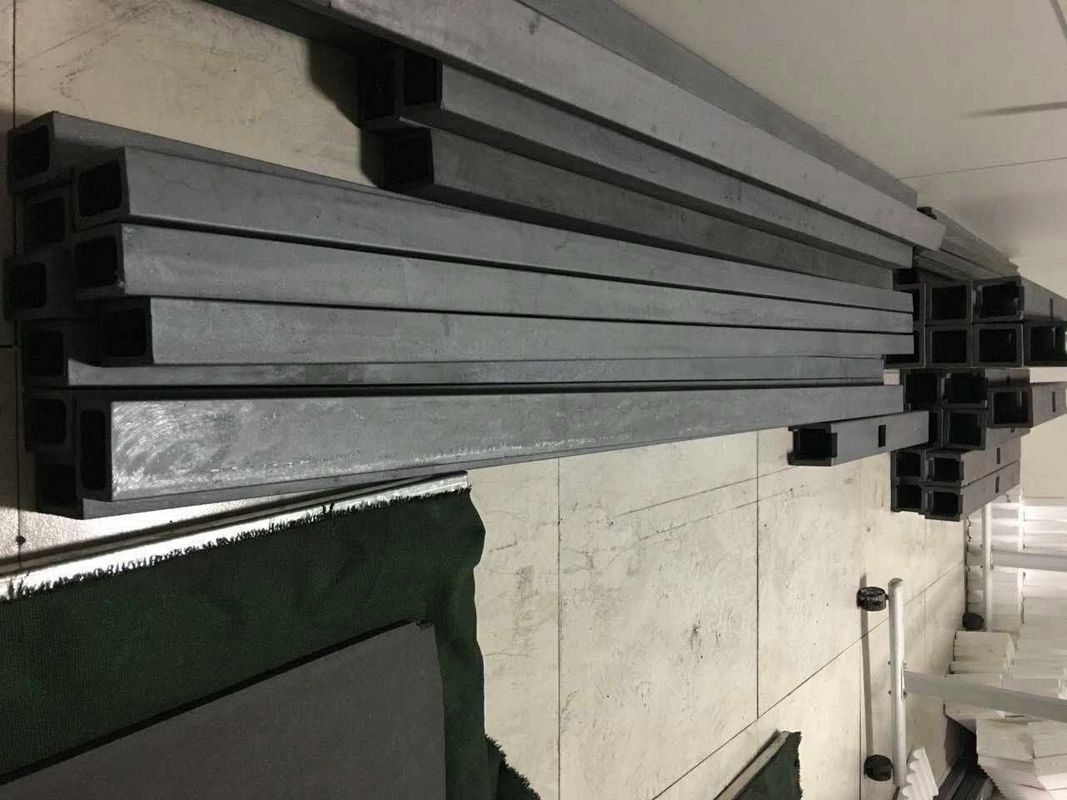

Oxidation resistant SiSiC silicon carbide ceramic beam with low price are used for the loading structure systems of tunnel kilns, shuttle kilns and many other industrial kilns. RBSIC ceramic cross beams have higher strength and there are no deformations even at high emperatures, and also the beams display ver long service life. They are the most suitable kiln furnature for sanitarywear and electrical porcelain applications.Besides, RBSIC beams have excellent thermal conductivity, so it is available to save energy with less weight of the kiln car.
2. Technical parameters of reaction bonded silicon carbide
| ITEM | UNIT | DATA |
| Temperature | ℃ | 1380 |
| Density | g/cm³ | ≥3.02 |
| Open Porosity | % | <0.1 |
| Moh's Scale of Hardness | 13 | |
| Bending Strength | MPa | 250 (20℃) |
| MPa | 280 (1200℃) | |
| Modulus of Elasticity | GPa | 330 (20℃) |
| GPa | 300 (1200℃) | |
| Thermal Conductivity | W/m.k | 45 (1200℃) |
| Coefficient of thermal expansion | k-1×10-6 | 4.5 |
| Acid Alkaline -proof | Excellent |
Property:
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
The reaction bonded silicion carbide ceramic is an ideal wear resistant material, which is especially suitable for the strong abrasive, coarse particles, classification, concentration, dehydration and other operations. Due to the above properties, the reaction bonded silicon carbide wear resistant ceramic tubes can effectively protect the part from high wear so as to prolong the service life of the equipment.
3. Main Application
The main products of reaction bonded silicon carbide ceramics are: cross beams, rollers, coling air pipe,burner nozzles,thermocouple protecting tubes,temperature measuring parts, radiant tubes, desulfurization nozzles, crucible,batts, wear resistant lining materials,plates, seals, rings and special shaped structural parts.
The RBSIC ceramic products are widely used in high temperature ceramic kiln,steel quench furnace,large boiler,power plant desulfurization dusting equipment and high-tech military equipment. The industry involves but not limited to daily-use ceramics, sanitary ceramics,porcelain insulator,crystallite glass, metallurgy, magnetic materials, electric power, chemical industry, steel, petroleum, machinery, military industry,etc.
We cooperate with many professional and powerful logistic companies, so we can provide customers with most favorable price and best logistic service.
Storage and Transportation:
Moisture proof, shock proof, collision proof. The storage time is 6 months, best performance within 6 months, and will be effected a little within another 6 months.
