Sintered Silicon Carbide Plate Batts Long Duration As Pottery Tools ISO

Sintered Silicon Carbide Plate Batts Long Duration As Pottery Tools ISO
Sintered Silicon Carbide Plate Batts Long Duration As Pottery Tools ISO

Large Image :  Sintered Silicon Carbide Plate Batts Long Duration As Pottery Tools ISO

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO
Model Number: KTRKF11
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX AND PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 5000PCS/MONTH

Sintered Silicon Carbide Plate Batts Long Duration As Pottery Tools ISO

Description
Application:: Refractory Material Refractoriness: 1580-1700℃
Max Using Temperature: 1400℃ Density: 2.7g/cm3
Advantage: High Strength Name: Silicon Carbide Batts
High Light:

high temperature ceramic plates

,

high alumina kiln shelves

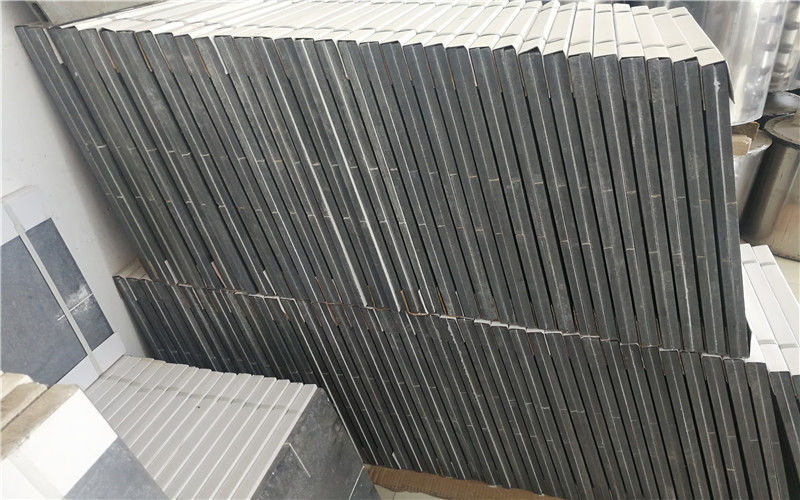

Sintered Silicon carbide batts of refractory kiln furniture used with Pottery tools





1. Description

Silicon carbide kiln shelf,Silicon Nitride Bonded Sic Brick / SiC brick is made of high quality synthetically made silicon carbide grains (SIC) and selected bonding components, including nitride, Si3N4.
The Si3N4 SiC Blocks is widely used in as lining bricks of large aluminum electrolytic cell. Using nitride bonded silicon carbide products to enlarge the tank capacity, improve the thermal conductivity, enable rapid cooling and increase the tank production capacity at the same time. On its surface can form alumina and cryolite of eutectic content, which can protect the tank lining work layer, prolong the tank's service life, therefore, silicon nitride bonded kiln shelf silicon carbides is a welcomed product in aluminum industry.
With SiC as the main raw material for refractories. Containing SiC72% ~ 99%.
Combined into clay, Si3N4 combined, Sialon with, β-SiC with, Si2ON2 combined and re-crystallization kiln shelf silicon carbide.



2. Silicon carbide batts features and advantages
good thermal condutivity
good high temperature strength
wear resistant
good thermal shock resistance
Low thermal conductivity.
Low thermal expansion.

Excellent oxidation resistance.
Excellent corrosion resistance.
long duration.

Silicon carbide kiln shelves have the characteristics of high flexing strength at elevated temperatures, high thermal shock resistance. High corrosion resistance and high thermal conductivity, high resistivity against alkalis.



3. Specifications

item
Technical Data
volume density(g/cm3)
2.70-2.75
apparent porosity(%)
7-8
strength at normal temperature(Mpa)
>50
high temperature bending strength(Mpa/1400℃)
>55
cold crushing strength
(Mpa)
>90
refractoriness under load
(℃)
>1750(T2)2Kg/cm2
maximum service temperature (℃)
1450
pyroconductivity (Kcal/m.h.℃)
13.5-14.5
thermalexpansivity
(×10-6/℃)
4.2-4.8

chemical compent
SiC>90%
Fe2O3<0.3%
Al2O3>99%(surface coating)

4. Package
We use high strength plywood box and pallet to pack. it is very good packing,

When shipping, sometimes package will have damage, so we have to be very careful when packing. Our customer said our package is very good, every time they receive pacakge, they find no damage, It is what we expect.



Every year, our customer will visit our factory and our city, they are very happy with our work.They say, China is more and more important in the world, Made in China is also a important in the world, without Made in China, they can not live well.

We are reliable and good partner.
