Reaction Bonded Refractory Kiln Furniture Silicon Carbide Pipe / Beam High Hardness

Reaction Bonded Refractory Kiln Furniture Silicon Carbide Pipe / Beam High Hardness
Reaction Bonded Refractory Kiln Furniture Silicon Carbide Pipe / Beam High Hardness

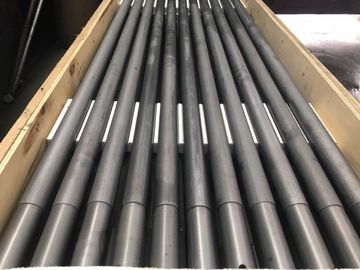

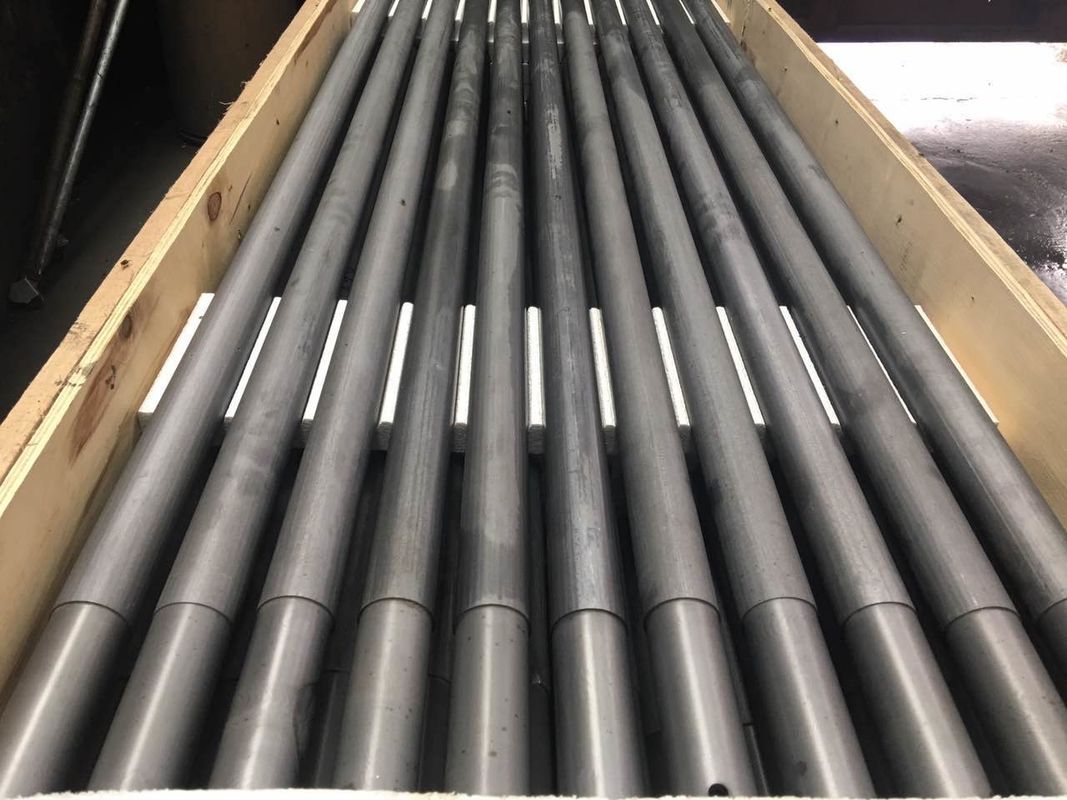

Large Image :  Reaction Bonded Refractory Kiln Furniture Silicon Carbide Pipe / Beam High Hardness

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO
Model Number: KTRKF5
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX AND PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability: 3000PCS/MONTH

Reaction Bonded Refractory Kiln Furniture Silicon Carbide Pipe / Beam High Hardness

Description
Name: Refractory Kiln Furniture Reaction Bonded Silicon Carbide Beam Shape: Tube
Type: Kiln Furniture Color: Black
Apparent Porosity %≤: 0.1 Density G/cm3≥: 3.02
High Light:

high temperature ceramic plates

,

high alumina kiln shelves

Refractory kiln furniture Reaction bonded Silicon carbide beam





1. Description

Reaction bonded Silicon carbide  is made from α-SIC powder,graphite powder,mixing additives and organic adhesive agent.It has features of high strength,high Temp. resistance,high hardness,high wear resistance,thermal shock resistance,good thermal conductivity.
KamTai Sic  Beam is mixed with high pure green sic powder and SIC fine powder, after slip casting , vacuum sintered under 2450°C,recrystallised the high technology SIC material. Owing to the high purity material (SIC ≥99.5%) and none middle combined phase, RSIC has the excellent high-temperature mechanical property, the working temperature can reach to 1380°C.

RSIC Recrystallized Silicon Carbide material can be used in ceramics, refractory, electric porcelain and electron line as the suitable kiln furniture, kiln fittings. The most outstanding characteristics are high size stability, load-bearing ability under high temperature and well energy saving effect. Many products can be made from it, such as roller, beam, plate, and other structural parts. RSIC material has well properties of oxidization resistance and corrosion resistance, hardness and wear resistance. RSIC material can be made into structural parts to be applied in metallurgy, mechanics, chemical industry and military line.



2. Product Features

* High abrasion resistance

* High energy efficiency

* Largest free passage in spiral design

* Customized



3. Product technical data

item Data
Density g/cm3≥ 3.02
Apparent porosity %≤ 0.1

Bending Strength MPA



250(20°C)
280(1200°C)
Thermal conductivity W/m.k 45(1200°C)
modulus of elasticity Gpa 330(20°C)
Thermal explanation K-1×10-6 4.5
Hardness(Mohs’) 13
Temperature of application°C 1380
acid-proof alkaline

Excellent



WE CAN FORMULATE ACCORDING TO YOUR DETAILED USING CONDITION.



4. FAQ

Are your samples free or need cost?
Actually it depends on the products. For low value products, we will provide free spls, freight collect. But for some high value spls, it need spl cost and freight collect. Pls informed that all spls cost and freight cost can be returned back to you after order placed. You’re welcomed to email us for checking.


How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.

Can you do the designs for us?
Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.

How long can I expect to get the sample?
It will be ready for delivery in 7-15 days. The samples will be sent to you by express. You can use your own express account or prepay us if you do not have an account.
