Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO
Model Number: KTRKF2
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX AND PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 3000PCS/MONTH

Refractory Mullite Kiln Shelves Pusher Plates Distortion Resistance ISO Certification

Description
Type: Pusher Plate Density: 2.4g/cm3
Shape: Plate Using Temperature: 1400-1600℃
Warranty: 1 Year Package: Wooden Box
High Light:

high temperature ceramic plates

,

high alumina kiln shelves

900-1700 Celsius mullite push Plates for refractory kiln furniture



1. Description

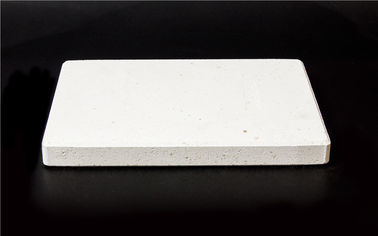

Mullite push plate is a ideal material to be used in high temperature furnace,especillay in the industry of magnetic material .When you sinter magnetic material (like soft ferrite core ), it will be necessary.

Our push plate is widely used in high temperature furnace,it has long using life and high strength.



2. Technical data

property cordierite mullite cordierite- mullite Mullite -- corundum
Al2O3 % ≥ 40 ≥ 65 ≥ 80 ≥ 92
Fe2O3 % ≤ 1.5 ≤ 1.5 ≤ 1.2 ≤ 0.5
density g/cm3 ≥2.0 ≥2.4 ≥2.6 ≥3.7
Thermal expansion 1000 C 2.30 5.0 6.50 7.8
Refractoriness C ≥ 1580 ≥1650 ≥ 1750 ≥ 1850
Thermal stability 1100 C--(cold water)times ≥ 70 ≥ 20 ≥ 10 ≥ 5
Working temperature ≤ 1250 ≤ 1350 ≤ 1450

≤ 1500





3. Features

1. It has excellent thermal stability and distortion resistance at high temperature.

2. Superior corrosion and oxidation resistance.

3. Low apparent porosity and thermal expansion.

4. Outstanding thermal shock resistance.

5. Excellent thermal conductivity

WE HAVE PROFESSIONAL DETECTING EQUIPMENT

We are aimed to improve R&D and production process and equipment. Moreover, we cooperate with famous university such like Liaoning University of Science and Technology, Beijing University of Science and Technology.

4. We promise
- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.We have professional trade team, and we can offer best price and service, sometimes you need to tell me detailed using temperature and condition, then we can know the best material for you, and we can give you good price and aftersales service.
