Product Details:
|
| Type: | Kiln Furniture | Material: | Silicon Carbide |
|---|---|---|---|
| Size: | Customize | Shape: | Rectangle |
| Color: | Black | Using Area: | Kiln |
| High Light: | ceramic kiln furniture,silicon carbide shelves |
||
1. Product Description

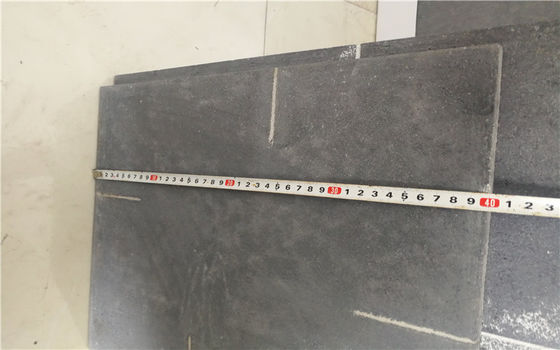

Refractory silicon carbide plate, also known as carborundum, is a compound of silicon and carbon with a chemical formula SiC. is made through high temperature sintering, adopting the higher quality raw materials. It has characteristics of stable performance, excellent thermal shock resistance, oxidation resistance, long life, thin volume but high bulk density. Its good thermal conductivity can assure to save energy at maximum level.
Refractory silicon carbide plate is distinguished by high strength that stays nearly constant up to very high temperatures (1500° C), maintaining that strength over long periods.
This material displays an extremely high corrosion resistance in acidic and basic media, and this too is maintained up to very high temperatures. These properties are outstanding among high-temperature ceramics, and are complemented by high thermal shock resistance, high thermal conductivity, high resistance to wear, and hardness close to that of diamond.
2. Feature of Product
1) Good properties of cauterization-resistance
2) Anti-oxygenation,anti-aging,anti-transfiguration
3) Heat-resistance and big intensity at high temperature
4) Perfect heat-conduction performance and wearability hi
3. Specification
| Item | Technical Data |
| Volume density(g/cm3) | 2.70-2.75 |
| Apparent porosity(%) | 7-8 |
| Strength at normal temperature(Mpa) | >50 |
| High temperature bending strength(Mpa/1400℃) | >55 |
| Cold crushing strength(Mpa) | >90 |
| Refractoriness under load (℃) | >1750(T2)2Kg/cm2 |
| Maximum service temperature (℃) | 1450 |
| Pyroconductivity (Kcal/m.h.℃) | 13.5-14.5 |
| Thermalexpansivity(×10-6/℃) | 4.2-4.8 |
| Chemical compent | SiC>90% |
| Fe2O3<0.3% | |
| Al2O3>99%(surface coating) |
| MAIN SIZE OF SILICON CARBIDE KILN SHELF | |||||||
| 240*200*T | 295*295*T | 310*310*T | 320*320*T | 340*340*T | 320*150*T | ||
| 320*300*T | 340*200*T | 380*340*T | 400*150*T | 400*190*T | 400*195*T | ||
| 400*200*T | 400*230*T | 400*270*T | 400*320*T | 400*400*T | 420*420*T | ||
| 450*450*T | 400*215*T | 320*240*T | 550*400*T | 500*450*T | 500*370*T | ||
| 600*500*T |
|
600*400*T | 600*550*T | 620*560*T | 550*370*T | ||
| 700*500*T | 550*500*T | 500*480*T | 600*400*T | 420*400*T | 450*400*T | ||
| Thickness can be 10-30mm | |||||||
5. Application of Product silicon carbide plate
Shed board, flame clapboard and push board in the field of pottery porcelain and abrasive tool,etc.
