Cordierite Slab Cordierite Kiln Shelves Thermal Shock Resistance Lightweight

Cordierite Slab Cordierite Kiln Shelves Thermal Shock Resistance Lightweight
Cordierite Slab Cordierite Kiln Shelves Thermal Shock Resistance Lightweight Cordierite Slab Cordierite Kiln Shelves Thermal Shock Resistance Lightweight

Large Image :  Cordierite Slab Cordierite Kiln Shelves Thermal Shock Resistance Lightweight

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTCM18
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Plywood box and Pallet
Delivery Time: 25 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000sets/MONTH

Cordierite Slab Cordierite Kiln Shelves Thermal Shock Resistance Lightweight

Description
Length: 340mm Width: 340mm
Density: 2.0g/cm3 Feature: Good Thermal Shock Resistance
Max Using Temperature: 1280 ℃ Size: 340*340*10mm
High Light:

cordierite kiln furniture

,

heat resistant shelf

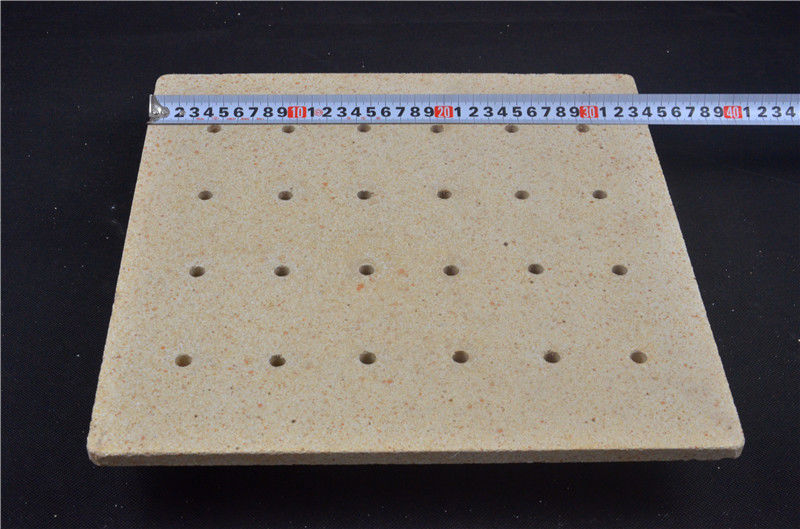

Kam Tai Refractory Cordierite slab 340*340*10mm of kiln furniture



1. Details

Cordierite ceramics are well known for their low thermal expansion and refractory character. Although cordierite is available as a powder, when we use the term we are generally talking about ceramic that went into the kiln as ordinary composite of ceramic powders but emerges as a cordierite crystalline matrix (grown by the firing process tuned to its needs).
Cordierite makes the ceramic manufacture of products like catalytic converters possible. They constantly heat up and cool down quickly and must not crack because of the shock. These converters get their thermal shock resistance properties from a bonded matrix of low-expansion cordierite crystals. These crystals form during firing between 1300 to 1400C (interestingly, cordierite crystals have a lesser thermal expansion along one axis than another). Thus, the better the density of the precursor mix and controlled the firing the better the properties of the cordierite material are.
The ideal chemistry to produce the crystals is 13.8% MgO, 34.8% Al2O3 and 51.4% SiO2 (2MgO, 2Al2O3, 5SiO2). Talc, kaolin and raw alumina powder can be blended to produce this chemistry (other materials are also used e.g. aluminum hydroxide, steatite and other MgO minerals). Compound materials (like kaolin and talc) react better than pure oxide materials (like MgO, Al2O3, SiO2). Materials of finer particle size react better.



2. Technical parameters

Item and Descriptions
Specifications Offered
Al2O3 (%)
40~48
SiO2 (%)
45~48
MgO (%)
5~8
MOR(MPa)
20℃
14
1250℃
12
Bulk Density(g/cm3)
2.0
Open Porosity(%)
28
Phase composition(%)
Mullite
55
Cordierite
30
Max. Service temperature ℃
1280


WE HAVE PROFESSIONAL DETECTING EQUIPMENTWe are aimed to improve R&D and production process and equipment. Moreover, we cooperate with famous university such like Liaoning University of Science and Technology, Beijing University of Science and Technology.



3. Our Service
- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.
