Product Details:
|
| Name: | High Wear Resistance Alumina Ceramic Grinder Parts | Package: | Carton Box |
|---|---|---|---|
| Density: | > 3.7g/cm3 | Color: | Ivory White |
| Water Absorbtion: | 0 | Shape: | Round |
| Application: | Industrial Ceramic | Size: | Size Customized |
| Highlight: | porous ceramic disc,alumina ceramic tube |
||

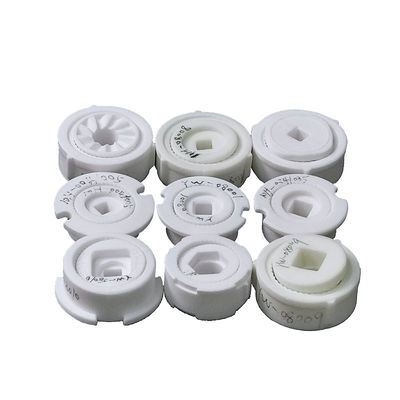

Alumina ceramic grinder
1. Description
Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.
| Item | Unit Symbol | 95% Alumina Ceramics | 99% Alumina Ceramics | 99.7% Alumina Ceramics |
| Maximum Using Temperature | ℃ | 1600 | 1700 | 1700 |
| Water Absorption | % | 0 | 0 | 0 |
| Hardness | Gpa | ≥85 | ≥89 | ≥89 |
| Flexural Strength | MPa (psi x 103) | 336 | 550 | 550 |
| Compressive Strength | MPa (psi x 103) | 2000 | 2500 | 2500 |
| Fracture Toughness | Mpa | 4~5 | 5.6 | 6 |
| Thermal Conductivity | W/m °K | 18-25 | 30 | 30.4 |
| Thermal Shock Resistance | °C | 220 | 180-220 | 180-220 |
| Dielectricity Constant | 9.4 | 9.8 | 9.8 | |
| Dielectric Strength | kV/mm | 16 | 22 | 22 |
Characteristics:
Wear-resisting performance is good
This ceramic grinder used on the coffee/pepper grinder,which has good corrosion resistance, high operating temperature, good
mechanical characteristics, high wear resistance, high hardness, high thermal shock resistance.
