Cordierite Refractory High Temperature Ceramic Plates For shuttle kiln

$Cordierite Refractory High Temperature Ceramic Plates For shuttle kiln$

$Cordierite Refractory High Temperature Ceramic Plates For shuttle kiln$

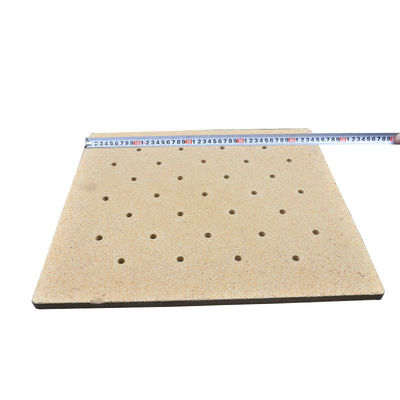

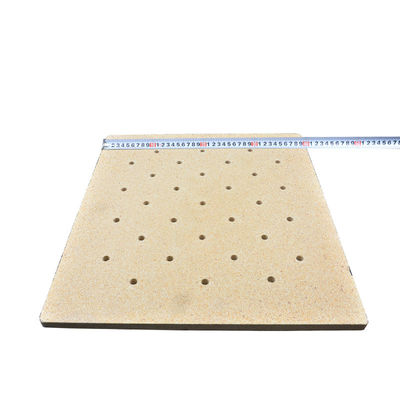

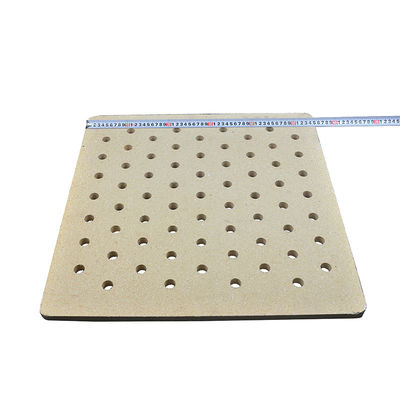

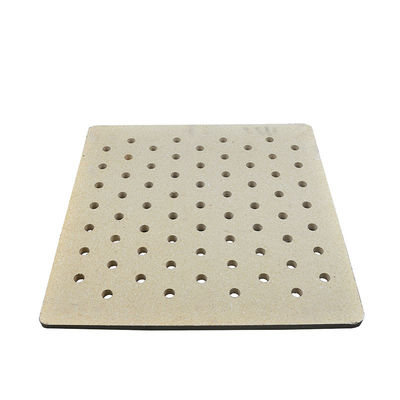

Large Image : Cordierite Refractory High Temperature Ceramic Plates For shuttle kiln

Product Details:

Place of Origin:	CHINA
Brand Name:	KAMTAI
Certification:	ISO
Model Number:	KTRKF3

Payment & Shipping Terms:

Minimum Order Quantity:	300 PCS
Price:	Negotiable
Packaging Details:	PLYWOOD BOX AND PALLET
Delivery Time:	25 DAYS AFTER PAYMENT
Payment Terms:	T/T, L/C, Western Union, MoneyGram,Paypal
Supply Ability:	3000PCS/MONTH

Contact Now

Cordierite Refractory High Temperature Ceramic Plates For shuttle kiln

Description

Features:	Thermal Shock Resistance	Name:	Cordierite Kiln Furniture
Density:	＞2.0g/cm3	Color:	Yellow
Shape:	Plate	Application:	Furnace
Packaging Material:	Wood	Packaging Type:	Case
Highlight:	high temperature ceramic plates , alumina ceramic disc

Cordierite ceramic refractory kiln furniture used for sanitary ceramic

1. Product introduction

A. Weight reduction of approximately 35% - 50%, whilst increasing the load capacity of the batt. For example, a 38mm-thick extruded batt has the same weight as a 23mm-thick pressed batt of the same size, but can bear 5 times the load.

B. Energy Savings. Tests have shown that using extruded batts in a shuttle kiln firing glass panels, fuel consumption can be reduced by between 30% and 70%.

C. Reduced bend at high temperatures. 1200mm long extruded batts supported by silicon carbide beams have shown virtually no bend during use. This is extremely useful where flatness is critical, such as in the firing of glass panels.

D.Their ability to disperse heat is twice that of a solid batt of similar size, allowing them to bear extremes of hot and cold much better, thereby increasing their service life. This makes extruded batts especially suitable for faster firings.

2. Specifications

Item	Unit	Index
Al2O3	%	50
SiO2	%	40
MgO	%	5
Fe2O3	%	＜1
Cao	%	＜2
Other	%	＜2
Max. Service Temp.	℃	1300
Refractoriness≥	℃	1420
M.O.R at 20 ℃	Mpa	18
M.O.R at 1250℃	Mpa	17
Apparent Porosity	%	20-28
Specific heat at 20℃	Kg/kg.k	1.1
Bulk Density	g/cm3	2.0-2.2

3. Application

Cordierite kiln furniture is widely used in santary ceramic, pottery , porcelain insulator and so on.

Commonly customer use it under 1280℃.

4. Why choose us

1) Over 10 years engaged in designing and manufacturing.

2) Factory supplier directly, Skillful manufacturing, Steady worker .

3) Modern design,Available in different sizes and colors.

4) Competitive price on stable quality.

5) High Professional Qualification: SGS ISO

$Cordierite Refractory High Temperature Ceramic Plates For shuttle kiln 0$
