Product Details:
|
| Color: | White | Grade: | 95% |
|---|---|---|---|
| Application: | Furnace Use | Water Absorption: | 0 |
| Strength: | Very Good | Package: | Carton Box |
| Material: | Alumina Ceramic | MOQ: | 1000PCS |
| High Light: | aluminum oxide ceramic stud,furnace aluminum oxide ceramic,white aluminum oxide ceramic |
||

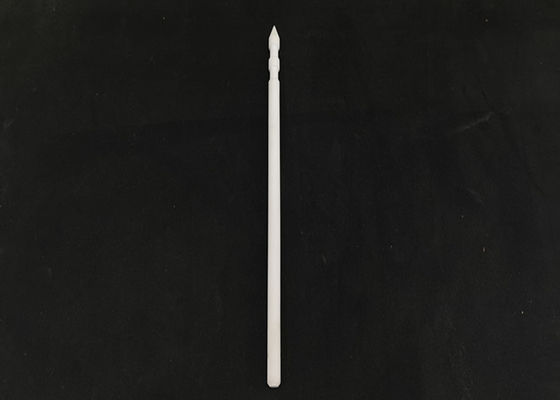

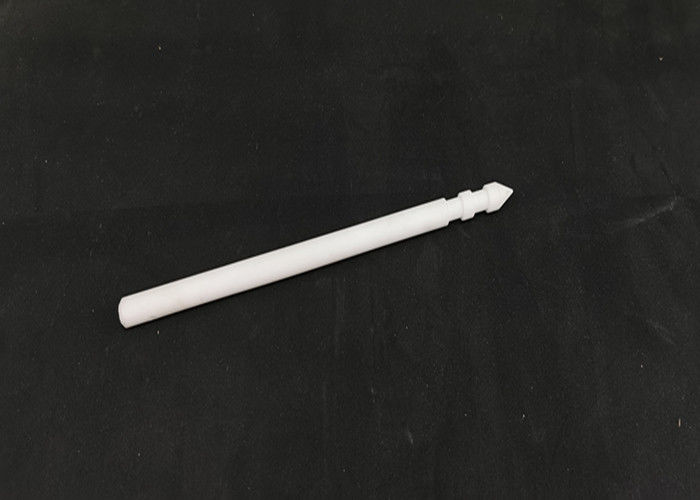

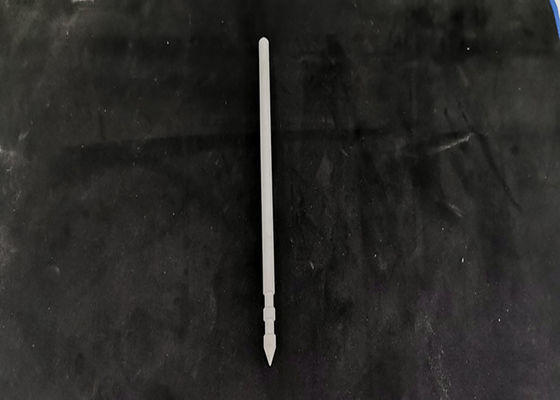

High - Temperature Alumina Ceramic stud
1. Description
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.
3. Technical data of Alumina ceramic
|
Performance
|
95 Grade
|
99 Grade
|
|
Bulk Density
|
≥3.7 g/cm3
|
≥3.8 g/cm3
|
|
Tensile Strength
(Nrmal Temperature)
|
≥160 mpa
|
≥190 mpa
|
|
Bending Strength
(Nrmal Temperature)
|
≥280 mpa
|
≥310 mpa
|
|
Modulus of Elasticity
|
3.5*10 kg/cm2
|
3.6*10 kg/cm2
|
|
Modulus of Friction
|
0.06-0.1
|
0.06-0.1
|
|
DC Breakdown Strength
|
≥25 kv/mm
|
≥30 kv/mm
|
|
Rigidity(HV)or(HRA)
|
1650 mpa or ≥75
|
1650 mpa or ≥80
|
4. Application
