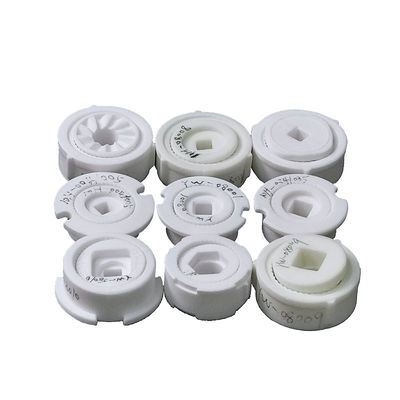

Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance

Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance
Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance
Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance

Large Image :  Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTYMJ
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 10000PCS/ MONTH

Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance

Description
Name: High Wear Resistance Alumina Ceramic Grinder Parts Package: Carton Box
Density: > 3.7g/cm3 Color: Ivory White
Water Absorbtion: 0 Shape: Round
Application: Industrial Ceramic Size: Size Customized
High Light:

porous ceramic disc

,

alumina ceramic tube





Alumina ceramic grinder



1. Description

Aluminium Oxide, Al2O3 is the most widely applied and cost effective technical ceramic material. It offers a combination of superior mechanical strength and electrical properties, wear resistance and corrosion resistance. The maximum working temperature is up to 1700 °C with relatively high thermal conductivity. It is also an electrically insulating material with a high electrical resistivity. The good corrosion resistance makes it insoluble in water and slightly soluble in strong acid and alkaline solution.


Alumina ceramic are widely used in roller kilns for firing wall tile, floor tile, table ware, sitall tile, magnetic materials and electronic ceramic,etc.

Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance 0


2. Technical Parameter:
Item Unit Symbol 95% Alumina Ceramics 99% Alumina Ceramics 99.7% Alumina Ceramics
Maximum Using Temperature 1600 1700 1700
Water Absorption % 0 0 0
Hardness Gpa ≥85 ≥89 ≥89
Flexural Strength MPa (psi x 103) 336 550 550
Compressive Strength MPa (psi x 103) 2000 2500 2500
Fracture Toughness Mpa 4~5 5.6 6
Thermal Conductivity W/m °K 18-25 30 30.4
Thermal Shock Resistance °C 220 180-220 180-220
Dielectricity Constant   9.4 9.8 9.8
Dielectric Strength kV/mm 16 22 22



Characteristics:
Wear-resisting performance is good
This ceramic grinder used on the coffee/pepper grinder,which has good corrosion resistance, high operating temperature, good
mechanical characteristics, high wear resistance, high hardness, high thermal shock resistance.



Pepper Mill Aluminum Oxide Ceramic Grinder Parts High Wear Resistance 1
