High Strength Refractory Sintering Plate High Temperature Resistance

High Strength Refractory Sintering Plate High Temperature Resistance
High Strength Refractory Sintering Plate High Temperature Resistance High Strength Refractory Sintering Plate High Temperature Resistance High Strength Refractory Sintering Plate High Temperature Resistance

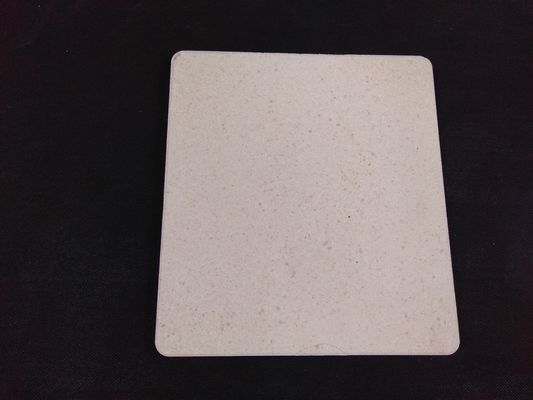

Large Image :  High Strength Refractory Sintering Plate High Temperature Resistance

Product Details:
Place of Origin: CHINA
Brand Name: KT-RS
Certification: ISO
Model Number: KT-SANMINGZHIBAN
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: 10-25$ per pc
Packaging Details: Plywood box
Delivery Time: 25-30 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS PER MONTH

High Strength Refractory Sintering Plate High Temperature Resistance

Description
Material: Mullite And Sic Size: 310*310*12mm
Package: Wooden Box MOQ: 100PCS
Density: > 2.7g/cm3 Color: White
Using Life: Over 1 Year Al2O3: > 70%
High Light:

ceramic kiln furniture

,

silicon carbide plate



Refractory Sandwich Sintering plate



1.Introduction

Sandwich sintering plate is a multi-layer plate which is mainly made of high pure mullite, corundum,ZrO2 And combined with silicon carbide,It has many advantages such as high load softening point, high stability, low pollution, good thermal shock resistance, long using life and so on.

2.Application
   Mn-Zn ferrite core,Ni-Zn ferrite core and different kinds of magnetic materials
High Strength Refractory Sintering Plate High Temperature Resistance 0

3.Technical data

SM102
SM103
SG105
SZ107
DENSITY(g/cm3)
2.68
2.62
2.75
3.00
APPARENT PORSITY(%)
26.0
26.0
25.0
25.0
COLD CRUSHING STRENGTH(MPA)
85.0
75.0
65.0
65.0
ROOM TEMPERATURE
FLEXURAL STRENGTH(MPA)
12.0
11.0
10.0
10.0
HIGH TEMPERATURE
CRUSHING STRENGTH(MPA/1400℃)
10.50
9.50
8.00
8.00
THERMAL EXPANSION COEFFICIENT
(×10-6/℃)
5.50
6.50
7.00
8.00


Characteristics:
High thermal conductivity.
High abrasion resistance.
Excellent oxidation resistance.
Excellent thermal shock resistance.
High mechanical strength at high temperature.
Excellent corrosion resistance against chemicals.
Excellent corrosion resistance at high temperature.
Excellent thermal stability and distortion resistance at high temperature

High Strength Refractory Sintering Plate High Temperature Resistance 1
