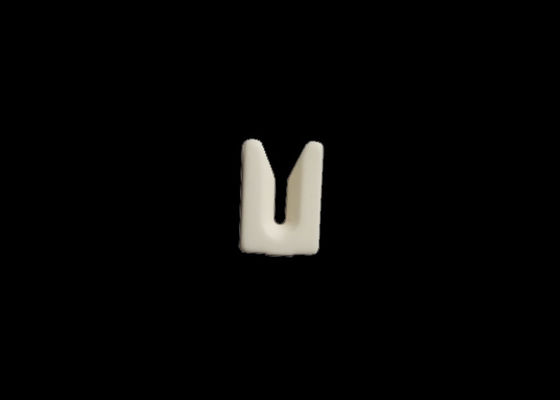

95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery

95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery
95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery

Large Image :  95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC14-30
Payment & Shipping Terms:
Minimum Order Quantity: 2500PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 20000PCS/ MONTH

95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery

Description
Name: 95% Alumina Ceramic Slotted Eyelet Guide For Textile Machinery Material: 95% Al2O3
Using Life: Long Time MOQ: 1000PCS
Package: Carton Box
High Light:

porous alumina plate

,

alumina ceramic tube

95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery



Textile Ceramic eyelet guides (Alumina ceramic eyelet ) apply to the coiling machine and spinning and weaving machinery, is in common use fault silk another piece , is used to demand no high fault silk occasion. Silk thread slides when the job, in china eye outside, for reducing friction, must raise material hardness , smoothness and form. Our company selects and uses 99%'s Al2O3 , hardness greater than HRa88 , density 3.85, surpasses essence throwing Ra0.2.

The cramic eyelet is used to set less (friction is also less) location of pressure right. For cost reduction , according to using a request, smoothness polishing handicraft is allotted being (0.8 throw Ra) roughly , is throw (Ra accurate 0.4), surpasses essence throwing (Ra0.2). Be that single face is super-accurate at the same time mark throw and two-sided super-accurate throw. Specification of china eye many, select and use specification listing in common use in sopport a customer the day afer tomorrow now, also may demand making to order according to the customer.



2.Benefits and advantages:

1.Good insulation

2. High purity aluminum

3.Low wear lose

4. Good corrosion resistance

5. High mechanical strength

6. High density and hardness

7. Long service life

8. smooth surface





Item
Unit
95% Al2O3
99% Al2O3
99.7% Al2O3
ZTA
% Al2O3
%
95
99
99.7
70
Density
g/cm³
3.6
3.89
3.9
4.3
Porosity
%
0
0
0
0
Firing Temp
°C
1680
1700
1800
1600
Hardness
HV
1500
1600
1700
2000
Flexural Strength
Kgf/cm²
3000
3500
3500
4500
Compressive Strength
Kgf/cm²
25000
30000
30000
45000
Fracture Toughness
MPa/m
3~4
3.8
4
5~6
Max Operating Temp
°C
1450
1600
1700
1500
Coefficient
cm/cm/°C
8
5.6
8
8
Thermal Expansion
(RT to 700°C)
Thermal Conductivity
W/m°K
22
25
27
2.7
Volume Resistivity
20°C
(ohm - cm)
1012
1012
1012
1012
100°C
(ohm - cm)
1012~1013
1012~1013
1012~1013
1012~1013
300°C
(ohm - cm)
1010
1012
1012
1010
Dielectric Strength
Volts/mil
210
216
220
210

3.Application:



1.Textile machinery



2.Twisting machinery



3.Knitting machinery



4.Weaving machinery



5.Electronic wire feeder



6.Spinning machinery



7.Electronic cutters



8.Air jet mill





95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 0





95% Pure Alumina Ceramic Parts Slotted Eyelet Guide For Textile Machinery 1
