High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery

High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery
High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery

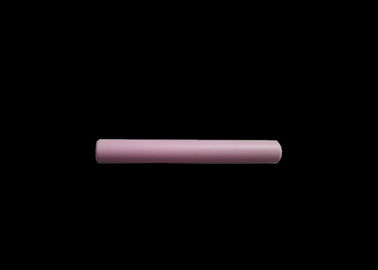

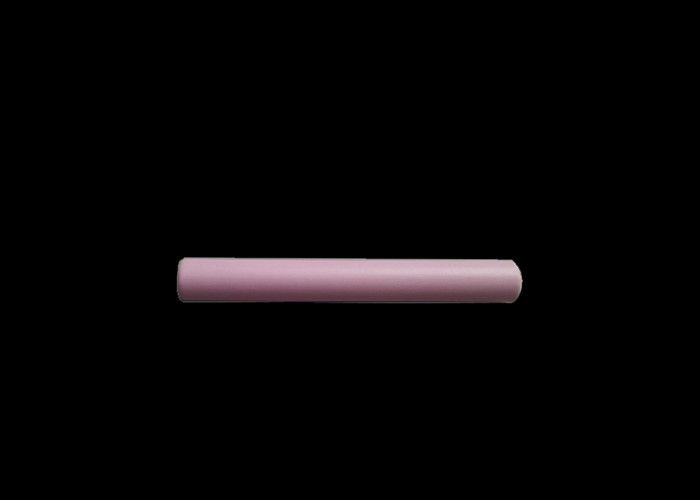

Large Image :  High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC14-26
Payment & Shipping Terms:
Minimum Order Quantity: 2500PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 20000PCS/ MONTH

High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery

Description
Name: High Wear Resistant 95% Alumina Ceramic Guide Roller For Textile Machinery Dielectric Constant(1MHZ): 9
Shape: As Your Drawing Elastic Modulus: 280GPA
High Light:

porous ceramic disc

,

porous alumina plate



1. Description

Alumina ceramic is the most cost effective and widely used material in the family of engineering ceramics. The raw materials from which this high performance technical grade ceramic is made are readily available and reasonably priced, resulting in good value for the cost in fabricated alumina shapes. With an excellent combination of properties and an attractive price, it is no surprise that fine grain technical grade alumina has a very wide range of applications.


Key properties
Hard, wear-resistant
Excellent dielectric properties from DC to GHz frequencies
Resists strong acid and alkali attack at elevated temperatures
Good thermal conductivity
Excellent size and shape capability
High strength and stiffness
Available in purity ranges from 94%, an easily metallizable composition, to 99.5% for the

Typical Uses
Gas laser tubes
Wear pads
Seal rings
High temperature electrical insulators
High voltage insulators
Furnace liner tubes
Thread and wire guides
Electronic substrates
Ballistic armor
Abrasion resistant tube and elbow liners
Thermometry sensors
Laboratory instrument tubes and sample holders
Instrumentation parts for thermal property test machines
Product Name
High Wear Resistant 95% alumina ceramic guide roller
Material
Zirconia, Alumina, and machinable ceramic
Color
White
Size
According to drawings or samples
Surface Roughness
Ra0.05
Torlerance
+/- 0.01mm
Lead time
10 - 30days
Shipping
Air Express (DHL/UPS/TNT/ FedEx)




2.Performance For Industrial Ceramic



Item   Unit Steatite ceramic 95 Al2O3 96 Al2O3
Physical Characteristics Bulk density g/cm3 2.7 3.6 3.6
Water absorption % 0 0 0
Mechanical Characteristics Flexural strength Mpa 145 320 340
Hardness Vickers Gpa 5.7 12.2 13.5
Elastic modulus Gpa 120 280 320
Poisson’s ratio - 0.21 0.22 0.23
Thermal Characteristics Linear expansion coefficient (20-5000C) 10-6/℃ 7.9 7.1 7.2
Thermal conductivity w/(m.k) 2.5 16 24
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78
Electrical Characteristics Dielectric constant(1MHZ) - 6.2 9 9.4
Dielectric loss angle *10-4 18 15 5
Dielectric strength *106V/m 18 12 15

We can supply the products according to customer's drawings, samples and performance requirement.
