95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery

95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery
95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery 95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery 95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery

Large Image :  95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: ISO 9001
Model Number: KTJC14-18
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 20000PCS/ MONTH

95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery

Description
Name: 95% Alumina Textile Ceramic Yarn Guide For Textile Machinery Alumina Ceramic Guide Coefficient Of Linear Expansion: 6.5-8.0 ×10-6/°C
Puncture Strength: 15KV/mm Thermal Conductivity: 25.2W/m·k
MOQ: 3000
High Light:

porous ceramic disc

,

alumina ceramic tube

95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery



1.Description

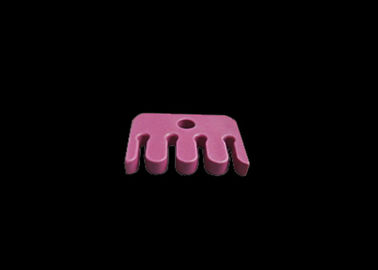

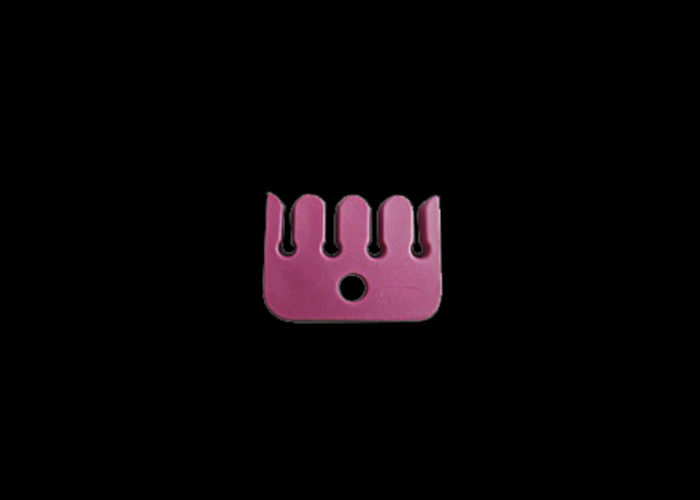

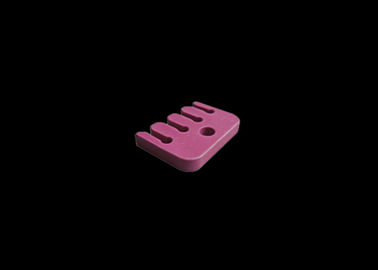

High alumina ceramic textile thread guide



Features:

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products

7) OEM, ODM and OBM are welcomed



We can supply the products according to customer's drawings, samples and performance requirement.



Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc



Item Testing condition Unit 95% al2o3 99% al2o3 99% al2o3 99.5% al2o3 zirconia
Bulk density   g/cm3 >3.60 3.7 3.7 3.7 6
Flexural Strength   N/m2×103 2.24 >2.24 >2.24 >2.74 11
Coefficient of linear expansion 20~800°C ×10-6/°C 6.5~8.0 6.5~8.0 6.5~8.0 6.5~8.0 9.5
Permittivity 1MHz   9~10 9~10.5 9~10.5 9~10.5 /
10GHz   9~10 9~10.5 9~10.5 / /
Insertion loss 1MHz ×10-6 ≤4 ≤2.5 ≤2.5 ≤1.5 /
10GHz ×10-6 ≤10 ≤6 ≤6 / /
Bulk density resistance 100°C Ω·Cm >1013 >1013 >1013 >1014 >1012
Puncture strength   KV/mm 15 15 15 / /
Thermal conductivity 20°C W/m·k 25.2 25.2 25.2 29.2

3









2.Application:



1) Knitting Machine



2) Winder Guides for PA thread



3) Twisting Machinery



4) Sensible fiber at low speed



5) Sensible fiber at high speed



6) Weaving machinery



7) Texturing machinery



95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery 0    95% Alumina Ceramic Parts Textile Ceramic Yarn Guide For Textile Machinery 1
