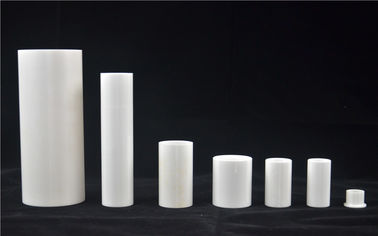

Industry Precision Zirconia Ceramic Piston , White Color Ceramic Coated Pistons

Industry Precision Zirconia Ceramic Piston , White Color Ceramic Coated Pistons
Industry Precision Zirconia Ceramic Piston , White Color Ceramic Coated Pistons

Large Image :  Industry Precision Zirconia Ceramic Piston , White Color Ceramic Coated Pistons

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTZR15
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Carton box and Plywood box
Delivery Time: 25 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/MONTH

Industry Precision Zirconia Ceramic Piston , White Color Ceramic Coated Pistons

Description
Name: Industry Precision And High Strength ZrO2 Zirconia Ceramic Piston Material: Zirconia Ceramic
MOQ: 100PCS Application: Industrial Ceramic
Flexural Strength: 1150 MPa Type: Zirconia Ceramic
High Light:

zirconia ceramic tube

,

zirconia ceramic rod



Industry Precision and high strength ZrO2 Zirconia ceramic piston





1. Product Details

Zirconia ceramic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.Good smoothness, mechanical seal good, polishing surface and so on.

Pure ZrO2 is white, yellow or gray when containing impurities, generally contain HfO2, easily

separated.

There are three crystalline pure ZrO2 at atmospheric pressure: Monoclinic Zirconia (m-ZrO2),

Tetragonal Zirconia (t-ZrO2) and Cubic Zirconia (c-ZrO2) .

Machinable zirconia ceramic piston is our main product.As a professional manufacturer of ceramic products, kamtai has been working in this field for 5 years. Thanks to the support of our exalted customers and laborious employee. Our enterprise is developing fast. It’s our duty to provide high quality products and good service to our customers.

2. Product Characteristics

1) Preventing material from contamination because of its extreme low wear rate.

2) High grinding efficiency.

3) Lower total costs due to the long using life.

4) Suitable for high velocity operations and wet grinding operations.



3. Technical parameter

Property/Item Unit Parameter
Content wt% 94.6% ZrO2 5.2%Y2O3
Packing density Kg/L 3.5 (Ø5mm)
Density g/cm3 6.00
Hardness(HV) GPa >12
Elastic modulus GPa 200
Thermal conductivity W/m·K 3
thermal Expansion coefficient 10×10-6/℃ (20 to 400℃) 9.6
Pressing intensity KN ≥25(Ø 5mm)
Fracture tenacity MPam½ 8
Grain size µm

≤0.5




4. Application

Our Industrial ZrO2 Ceramic is widely used in high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.And we use dry press and injection moulding,cast moulding to mould zirconia ceramic.We have many size of zirconia ceramic, also we can customize according to your requirement.
