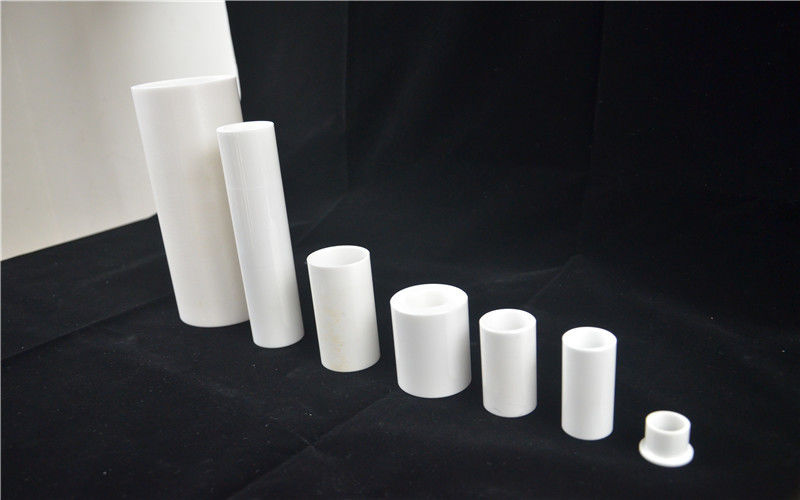

High Strength Zirconium Oxide Ceramic Tube Industrial Use For Metering Pump

High Strength Zirconium Oxide Ceramic Tube Industrial Use For Metering Pump
High Strength Zirconium Oxide Ceramic Tube Industrial Use For Metering Pump

Large Image :  High Strength Zirconium Oxide Ceramic Tube Industrial Use For Metering Pump

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTZR5
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Carton box and Plywood box
Delivery Time: 25 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/MONTH

High Strength Zirconium Oxide Ceramic Tube Industrial Use For Metering Pump

Description
Name: High Hardness And High Strength Zirconia Ceramic Tube For Industry Color: White
Usage:: Metering Pump Application: Machine
Density: 6.05g/cm3 Hardness(HV): >12Gpa
High Light:

zirconia ceramic piston

,

zirconia ceramic tube



High hardness and high strength zirconia ceramic tube for industry



1. Description

Zirconia ceramic has the advantages of super hardness, high wear-resisting,good corrosion resistance and electric insulation,resistant acid-base,high intensity,thermostable,high temperature tolerance,good insulation,high strength,precision process,high mechanical strength,good chemical stability.Good smoothness, mechanical seal good, polishing surface and so on.

As a wear resistant material, ceramic is widely used in many fields, for example, mechanical, electron, petroleum, chemicals, space and textile. Our company import high quality ZrO2 and Al2O3 material from Japan, to make high precision ceramic components through hot pressing,dry pressing or injection molding and high sintering.
It is characterized by high hardness, insulation, wear resistant, high temperature resistant and thermal shock resistant. And all kinds of customized ceramic substrate are available in customized requirement.

Zirconia ceramic is the most mature of the engineering ceramics, offering excellent electrical

insulation properties together with high hardness and good wear resistance,but relatively low

strength and fracture toughness.Zirconia  ceramics are generally white but may also be pink or

ivory.The color is derived from either the sintering additives or impurities in the raw materials.

1. High hardness.

2. High heat resistance : Zirconia ceramic has execellent themal stability,which means that it is

widely used in areas where resistance to high temperatures is essential.

3. Good wear resistance : Zirconia  ceramic is the material of choice for  wear parts.

4. High electrical resistivity : Zirconia is an electrically insulating material.

5. High corrosion resistance : It is insoluble in water and only slightly soluble in strong acid and

alkaline solutions. Good chemical stability of zirconia leads to high corrosion resistance.



2. Excellent features

Zirconia ceramic has the advantages of high glossiness, high heat resistance, good smoothness, good corrosion resistance, high wear-resisting, high intensity, precision process, polishing surface and so on. It widely used in a variety of mechanical equipments.


Unlike other ceramic materials, zirconia is a material with very high resistance to crack propagation. And its fine grain size enables excellent surface finishes and the ability to hold a sharp edge.


ZrO2 ceramics are used among other applications, as mobile phone shell, as zirconia diamonds, as materials for crowns and bridges in the dental industry, as insulating rings in thermal processes, and as oxygen measurement cells in lambda probes.



Industrial ZrO2 Ceramic is widely used in high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.



3. Material properties

Composition
wt%
94.6%ZrO2,5.4%Y2O3
Specific density
g/cm3
≥5.95
Hardness(HV)
GPa
>12
Thermal expansion
X10-6/k
9.6
Coefficient(20~400℃)
Elastic modulis
Anna Shi
205
Fracture toughness
M-2015008
7~10
Bending strength
Women, Girls
>1150
Grain size
μm
<0.5
Thermal conductivity
w/(m·k)
3


4. Usage

Materials for grinding and dispersed,structural ceramics,electronics,refractory ceramics,magnetic material,metallurgy,medicine,food,cosmetics,textiles,printing and dyeing,pigment and other industries.

We have professional equipment and we are very professional manufacturer.

When we produce zirconia ceramic , we use the best raw material.

And we use dry press and injection moulding,cast moulding to mould zirconia ceramic.
We have many size of zirconia ceramic, also we can customize according to your requirement.
