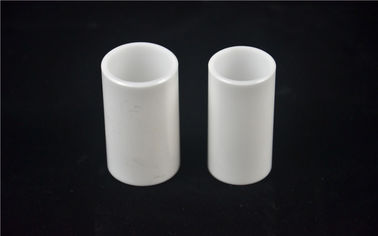

White Ceramic Cylinder Liner , Zirconia Tube Ceramic Material Properties

White Ceramic Cylinder Liner , Zirconia Tube Ceramic Material Properties
White Ceramic Cylinder Liner , Zirconia Tube Ceramic Material Properties

Large Image :  White Ceramic Cylinder Liner , Zirconia Tube Ceramic Material Properties

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTZR3
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Carton box and Plywood box
Delivery Time: 25 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/MONTH

White Ceramic Cylinder Liner , Zirconia Tube Ceramic Material Properties

Description
Name: High Performance Industrial Zirconia Ceramic Cylinder Liner For Sale Type: Zirconia Ceramic Cylinder Liner
Density: 6.0g/cm3 Color: White
Hardness: 6.5Moh's Compressive Strength: 2500
High Light:

zirconia ceramic tube

,

zirconia ceramic rod



High performance industrial zirconia ceramic cylinder liner for sale





1. Description

Except inheriting the special characters (high strength, high hardness, thermo-endurable capability, anti-chemicals and high chemical stability) of fine ceramics, zirconia also owns better tenacity than ordinary ceramic materials, which enable zirconia to be applied in many industries, such as the production of spindle seals and bearings, cutting tools, molds, and vehicle parts, etc.; it also can be applied for medical applications, such as being the artificial hip joints of human body and similar.



Zirconia material can be categorized into the following four sorts:

1. Fully stabilized zirconia (FSZ)

Formed by complete cubic lattices structure; poor in mechanical properties.

2. Zirconia toughened ceramics (ZTC)

Compound of the 2nd phase and other materials (Al2O3, Si3N4 and glass, etc.); the tenacity and mechanical properties are improved.

3. Partially stabilized zirconia (PSZ)

PSZ is the sort of zirconia material we are producing now; PSZ is made by adding Y2O3 into the zirconia structure base that will make the square lattice phase distributed in the cubic lattice phase; through the phase-change of square lattice phase, the zirconia organization would obtain higher tenacity and thus toughen the PSZ property.

4. Tetragonal zirconia polycrystals (TZP)

TZP is made by adding Y2O3-ZrO2 into the zirconia base, which can get better mechanical properties, higher strength, tenacity and chemical stability; it is widely applied in structure and medical applications.

- Product Name: Zirconia Ceramic
- Material: Yttria Stabilized Zirconia
- Typical Characteristics:

1. Excellent Mechnical Strength
2. High Impact Resistance

3. Good Thermal Shock Resistance

4. Very Low Thermal Conductivity

5. Low Expansion Coefficient

- Typical Applications:

1. Pump Components

2. Cutting Blades

3. Grinding&Milling Media

4. Valve Components

5. Bearings

6. Automotive Catalytic Systems

7. Wear linings

8. Oxygen sensors





3. Technical data

Properties / Material Zirconia
Density (g/cm3) 6.00
Vicker's Hardness(GPa) 12
Modulus Of Elasticity(@25°C, GPa) 205
Flexural Strength (MPa) 2200
Compressive Strength (MPa) 1150
Thermal Expansion Coefficient (10-6/K) 9.6
Thermal Conductivity (W/mk) 3



4. Application

Electric appliance industry/Automotive industry/Mechanical industry
Engineering industry/Electrical heating element industry/LED Lighting Industry, water jet pump.We have professional equipment and we are very professional manufacturer.

When we produce zirconia ceramic , we use the best raw material.

And we use dry press and injection moulding,cast moulding to mould zirconia ceramic.
We have many size of zirconia ceramic, also we can customize according to your requirement.
