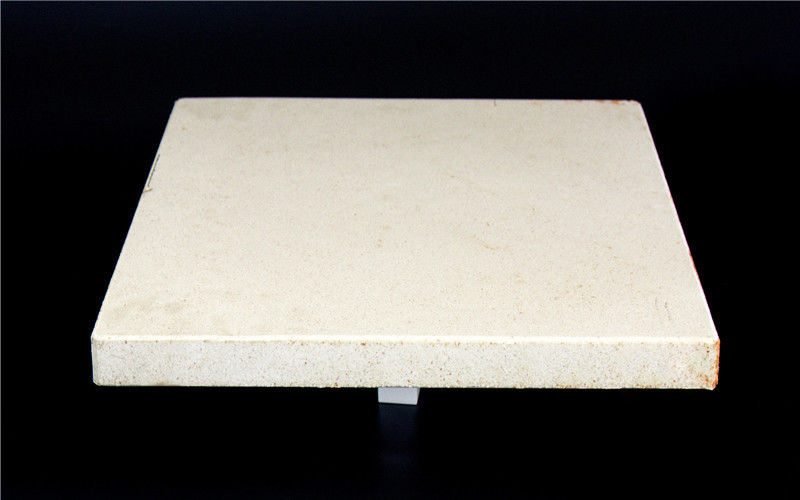

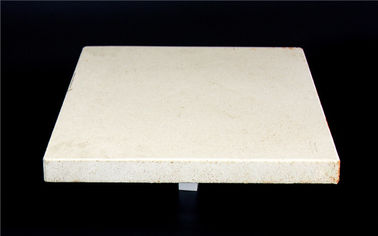

High Strength Lightweight Kiln Shelves Heat Resistance For Sinter Magnetic Material

High Strength Lightweight Kiln Shelves Heat Resistance For Sinter Magnetic Material
High Strength Lightweight Kiln Shelves Heat Resistance For Sinter Magnetic Material

Large Image :  High Strength Lightweight Kiln Shelves Heat Resistance For Sinter Magnetic Material

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTMK12
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,PAYPAL
Supply Ability: 5000PCS PER MONTH

High Strength Lightweight Kiln Shelves Heat Resistance For Sinter Magnetic Material

Description
Product Name: Mullite Kiln Shelves Feature: High Strength
Density: 2.4-2.7g/cm3 Al2O3: ≥65%
Show Porosity (%): 14.5-17 Shipping: By Sea
High Light:

lightweight kiln shelves

,

ceramic kiln shelves

High temperature Refractory Mullite kiln shelves for sinter magnetic material



1. Description

Mullilte kiln shelves  is widely used in magentic materials and powder metallurgy and ceramic industry .It plays roles of kiln shelf  in high temperature furnace.

If you are customer who need mullite push kiln shelves in these two industry , our mullite kiln shelves  will be your best option.It has high strength and high density than common mullite kiln shelves.It can bear high temperature thermal shock and high load deformation resistance.

Kiln wash is a layer of material between your pots and kiln shelves protecting your kiln shelves during glaze firing preventing glazes from sticking to your shelves. Unglazed pots can stick to the kiln shelf if the clay body vitrifies. Kiln wash is made of silica sand, alumina hydrate and kaolin. You can mix your own kiln wash or purchase.

We also recommend applying kiln wash to the brick on the bottom of the kiln to prevent from glaze drip damaging the soft brick.

If you are planning to rotate / flip your shelves over every few firing, you'll need to scrape and grind all the kiln wash from the bottom side first. Failing to do so will cause kiln wash particles to fall into the pots below and ruin the glaze effect.



2. Advantages
1). low thermal expansion
2). large specific heat capacity
3). high specific surface area
4). low pressure drop
5). small thermal resistance
6). good thermal conductivity
7). good heat-shock resisting ability



3. Specification

property cordierite mullite cordierite- mullite Mullite -- corundum
Al2O3 % ≥ 40 ≥ 65 ≥ 80 ≥ 92
Fe2O3 % ≤ 1.5 ≤ 1.5 ≤ 1.2 ≤ 0.5
density g/cm3 ≥2.0 ≥2.4 ≥2.6 ≥3.7
Thermal expansion 1000 C 2.30 5.0 6.50 7.8
Refractoriness C ≥ 1580 ≥1650 ≥ 1750 ≥ 1850
Thermal stability 1100 C--(cold water)times ≥ 70 ≥ 20 ≥ 10 ≥ 5
Working temperature ≤ 1250 ≤ 1350 ≤ 1450

≤ 1500





4. Why Choose us

- We will offer our best price.
- Your inquiry will be replied within 24 hours.
- Experienced staff can give you professional suggestions.
- We ensure you high quality products and timely delivery.
- We offer complete and good after-sale service.
