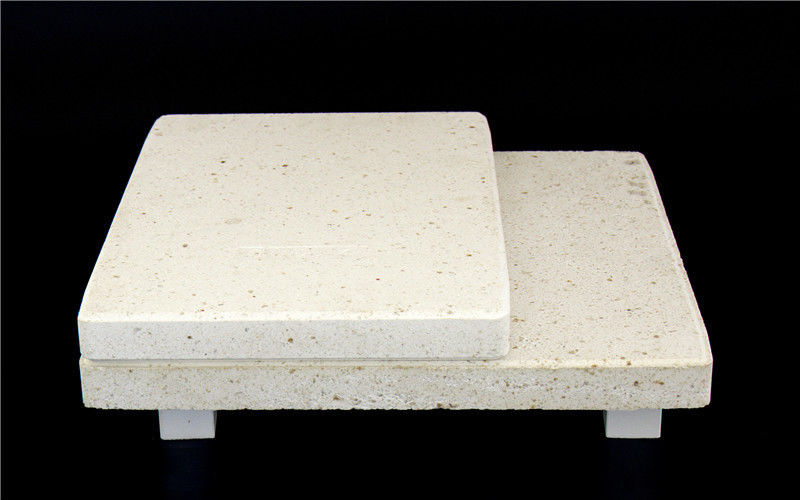

High Strength Mullite Kiln Shelves Lightweight Energy Saving Furnace Use

High Strength Mullite Kiln Shelves Lightweight Energy Saving Furnace Use
High Strength Mullite Kiln Shelves Lightweight Energy Saving Furnace Use

Large Image :  High Strength Mullite Kiln Shelves Lightweight Energy Saving Furnace Use

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTMK10
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: PLYWOOD BOX
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C, Western Union, MoneyGram,PAYPAL
Supply Ability: 5000PCS PER MONTH

High Strength Mullite Kiln Shelves Lightweight Energy Saving Furnace Use

Description
Package: Plywood Box Name: High Load And High Strength Refractory Mullite Kiln Shelves For Furnace
Using Area: High Temperature Kiln Al2O3: ≥65%
SiO2: 23-33% Using Temperature: <1500 ℃
High Light:

lightweight kiln shelves

,

round kiln shelves

High load and high strength refractory Mullite kiln shelves for furnace



1. Description

Cordierite and mullite are naturally occurring minerals that are commonly used to make kiln shelves and related kiln furniture items. Of the two, cordierite is the most common; mullite is rarely found in nature and is usually made synthetically and sold as a white powder.

Most often, kiln shelves are made from a mixture of cordierite and mullite powder, which is mixed with clay and other ceramic materials, shaped, then heated to form kiln shelves. Mullite shelves are sturdy, rigid, and long lasting, but they can break if dropped and may crack or cause air bubbles if heated when not dried thoroughly.

Really large mullite shelves are generally not manufactured because they're very heavy and they also tend to warp as the size increases. If you break your shelves, don't discard them; instead, use a tile saw to cut them into strips to use as dam material.

Interesting tidbit: In its natural state cordierite appears bluish when viewed from one direction and yellowish gray when viewed from the other. The stone is sometimes called dichroite, which is a Greek word, meaning "two colored rock." This same Greek work is also the root of "dichroic."



2. Technical Parameter

Item KT-MU1 KT-MU2
Al2O3 75% 65%
SiO2 23% 33%
Volume density (g/cm3) 2.70 2.65
Show porosity (%) 14.5 17
Breaking strength at RT 13 Mpa 11Mpa
AT 1400 ℃ 9Mpa 7Mpa
Compressive strength 70Mpa 65Mpa




3. Features
Excellent energy savings
Lighter weight and higher load capacity
Excellent distortion resistance at high temperature
Suitable for faster firings with better bearing capacity for hot and cold extremes
