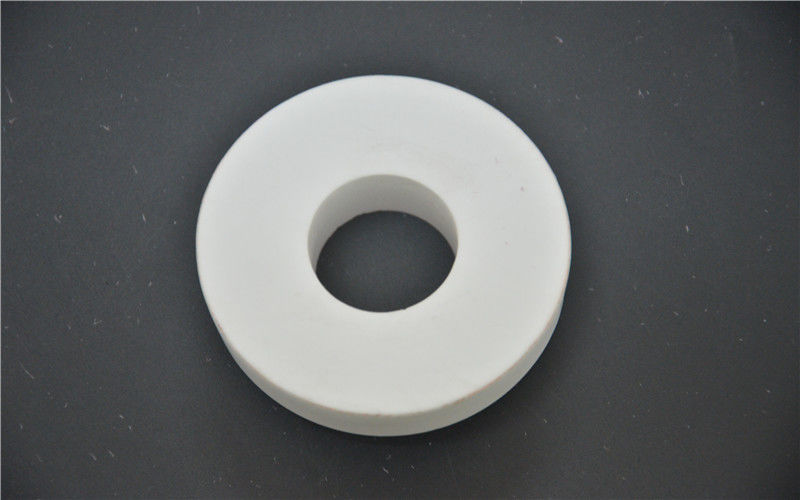

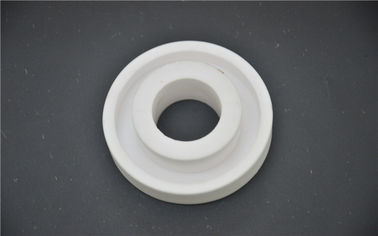

High Strength Alumina Ring Customized , Industrial Use Ceramic Rings

High Strength Alumina Ring Customized , Industrial Use Ceramic Rings
High Strength Alumina Ring Customized , Industrial Use Ceramic Rings High Strength Alumina Ring Customized , Industrial Use Ceramic Rings

Large Image :  High Strength Alumina Ring Customized , Industrial Use Ceramic Rings

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTALP19
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: CARTON BOX AND PLYWOOD PALLET
Delivery Time: 25 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 10000PCS/ MONTH

High Strength Alumina Ring Customized , Industrial Use Ceramic Rings

Description
Name: Factory Price High Temperature Resistance Alumina Ceramic Ring Material: 95% Alumina Ceramic
Size: Customize Bending Strength: 450Mpa
Water Absorbtion: 0 Type: Ceramic Ring
High Light:

porous ceramic disc

,

alumina ceramic tube



Factory Price High Temperature Resistance Alumina Ceramic ring



1. Description

Alumina ceramic product is produced by alumina as the main material, through the forming, high temperature sintering has good heat resistance, high performance, good compression wear-resisting performance , high insulating strength, high mechanical strength, thermal expansion coefficient little etc
Widely used in electronics, electrical equipment, instrument and apparatus, household appliances, electric vacuum device, communication equipment, temperature control switch, high-grade ceramic valve, faucet move sliding-vane, and other industries for precision components use and in the media with grinding and polishing




2. Main Features

1. Material:alumina ceramic
2. Using many fine technology such as dry press molding and isostatic press molding.
3. High strength,high hardness,resist to high temperature, wearing and corrosion.
4. It can do a good job under mang bad conditions such as high temperature,high pressure , vacuum, inflammable, explosive,acid,alkali,steam,non-lubricated environments.
5. Preventing material from contamination because of its extreme low wear rate.
Application:Materials for grinding and dispersed,structural ceramics,electronics,refractory ceramics,magnetic material,metallurgy,medicine,food,cosmetics,textiles,printing and dyeing,pigment and other industries.

3. Specification

Item
Unit
95% Alumina ceramic
99% Alumina ceramic
Bulk density
g/cm3
>3.6
3.89
Max use temperature
1500
1700
Water absorbtion
%
0
0
Bending Strength
Mpa
364
450
Expansion (25-800°C)
(X10-6/°C)
7.6
8
Thermal Conductivity
(W/(m.R))
20
35
Dielectric Strength



(kv/mm)
11
12



4. Pacakage
We often use carton box ,wooden box and pallet to pack Alumina ceramic.
We have professional logistic company, they can deliver to any port in the world and they can offer very good price.
