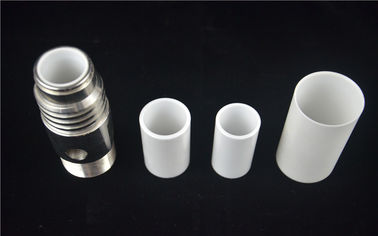

Industrial Zirconium Oxide Ceramic Tube For Piston Use High Performance

Industrial Zirconium Oxide Ceramic Tube For Piston Use High Performance
Industrial Zirconium Oxide Ceramic Tube For Piston Use High Performance

Large Image :  Industrial Zirconium Oxide Ceramic Tube For Piston Use High Performance

Product Details:
Place of Origin: CHINA
Brand Name: KAMTAI
Certification: SGS
Model Number: KTZR4
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Carton box and Plywood box
Delivery Time: 25 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/MONTH

Industrial Zirconium Oxide Ceramic Tube For Piston Use High Performance

Description
Name: High Performance Industrial Zirconia Ceramic Tube For Piston Use Material: Zirconia Ceramic
Hardness:: 1100(HV) Shape: Tube
Application: Industrial Ceramic Warranty: 2 Years
High Light:

zirconia ceramic piston

,

zirconia ceramic rod



High performance industrial zirconia ceramic tube for piston use



1. Description

Engineering ceramics are those which have been specially produced to create ceramic components to provide solutions for engineering conditions with specialist requirements. The thermal stability, wear-resistance and resistance to corrosion of ceramic components make the application of ceramic the ideal choice for many industrial areas.Ceramic components can provide considerable lifetime increases over conventional metal components.If you are looking for a material,that has a longer working life and can stand up to wear, corrosion and high temperature,the engineering ceramic is the answer.

Zirconia Ceramic

Zirconia offers the traditional ceramic benefits of hardness,wear resistance and corrosion resistance,without the characteristic ceramic property of absolute brittleness.


2. Advantages

1. Thermal insulator.

2. Good chemical stability.

3. High mechanical strength.

4. Good acid resistance.

5. High insulation.

6. Strong adsorption capacity.

Industrial ZrO2 Ceramic is widely used in high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity.



3. Technical data

Properties Unit Steatite ceramic 95% Al2O3 99% Al2O3 Zirconia Ceramic
density g/cm³ 2.7 3.6 3.8 5.6
Flexural strength Mpa 145 300 300 354
Hardness Gpa 5.7 7 10.7 12.3
Elastic modulus Gpa 120 275 320 205
Poissons ratio - 0.21 0.22 0.22 0.30
Linear expansion coefficient x 10-6/℃ 7.9 7.1 7.8 9
Thermal conductivity w/(m.k) 2.5 20 25 2.5
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.4



Manufacturing process

1. Customized Components

2. Rapid Preparation of Sample

3. Rapid Mould&Tooling Design

4. Precision Processing and Polishing

5.  High Volume Mass Production

6. Recommended Material&Production processing

7. Hot&Dry Pressing,Injection,Iso-static,Extrusion,Coating etc.

8. Engineering Testing Analysis&Stable Quality Control



4. FAQ

1. How can I get an offer?

You can send your drawing with technology requirements, and inform your purchase quantity. If you can, please inform what is your part used in. We will confirm what is the most suitable material and quote our best price to you in 24 hours.

2. Can you provide the free samples?

Yes, we can provide the sample free of charge if we have the stock product as customer's required, but the frieght is on your side.

3. Can you accept OEM&ODM?

Yes, we can produce the products according to your demand and drawing.
