Product Details:
|
| Flexural Strength Kgf/cm2: | 10-12 | Material: | Cordierite |
|---|---|---|---|
| Color: | White | Density: | 2.0g/cm3 |
| Thermal Conductivity W/(m.K): | 1.1-1.3 | Max Using Temperature: | 1200℃ |
| High Light: | stove top burner plates,gas stove burner plates |
||

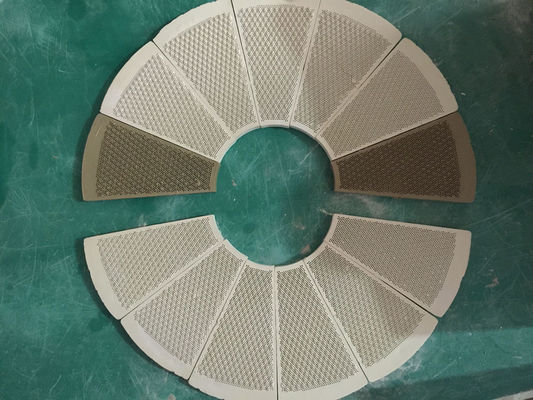

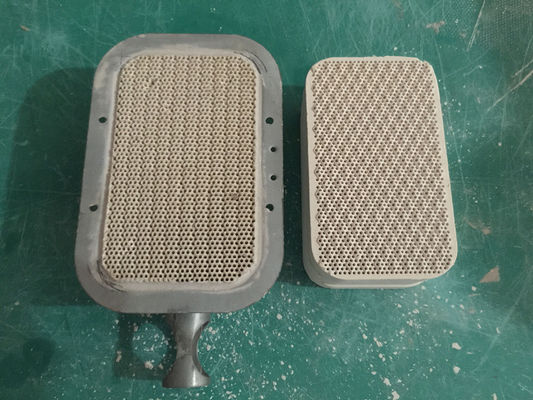

Infrared honeycomb ceramic gas heater plate for cassette gas-cooker
1. Description
Infrared Honeycomb Ceramic Plate, mainly for gas-fired infrared burners. Such a ceramic plate by honeycomb ceramic plate surface to improve the simple planar corrugated staggered three-dimensional, increasing the specific surface area and combustion area, which play a regenerative combustion role to achieve more complete combustion flame seedlings to reach the infrared burner heating effect, in order to achieve low power consumption and high environmental requirements. Overcome the planar flame in the combustion of the gas is too long, burning inadequate, resulting in high energy consumption, emissions low enough to deficiencies.
It's widely used in gas radiant heaters and plays the most important part in those applications. The interlaced corrugated surface of the ceramic tile combined with honeycomb design basis provides a superb surface area and working burning surface. We have also adopted the best raw material and new formula to maximize the micro-porosity of the tile. With all these advantages, the oxygen mix completely with the gas, burning without flame, emitting high efficiency far infrared ray and radiant heat, saving up to 40%-50% energy cost.
Our infrared ceramic burner plate is high heat transfer plate, it can increase burning efficiency.
2. Typical applications
1. Bake furnace
| Property | Value |
| Density g/cm3 | 0.6-0.7 |
| Water absorption | 40-50% |
| Flexural strength kgf/cm2 | 10-20 |
| Coefficient of thermal expansion 10-6/K | 1.5-2 |
| Thermal conductivity W/(m.K) | 1.1-1.3 |
| Maximum use temperature ℃ | 1200 |
| Thermal shock performance (20-1000 °C) | No crack 10 times |
|
MAIN SIZE OF INFRARED HONEYCOMB CERAMIC BURNER PLATE
|
|||
|
φ50*13mm
|
φ66*13mm
|
φ80*13mm
|
φ140*13mm
|
|
φ107*13mm
|
φ136*13mm
|
φ172*13mm
|
100*44*13mm
|
|
100*60*13mm
|
160*60*13mm
|
100*70*13mm
|
135*80*13mm
|
|
132*92*13mm
|
135*92*13mm
|
140*95*13mm
|
155*95*13mm
|
|
140*100*13mm
|
135*60*13mm
|
88*62*13mm
|
134*94*13mm
|
3. Package
We use carton box and plywood box to pack infrared honeycomb ceramic burner plate.We have professional logistic company, they can deliver to any port in the world and they can offer very good price.
We export infrared ceramic burner plate to many coutries,such as KOREA, GERMANY, AUSTRALIA, THAILAND, CAMBODIA,ITALY. RUSSIA, UK ,NEW ZEALAND and so on. So many customer come to our factory.They say our factory is good and our city is suitable for living.Although our factory has no long history,we are professional manufacturer.We can offer what customer need. That is why customer trust us.
