Product Details:
|
| Height: | 100mm | Material: | Cordierite |
|---|---|---|---|
| Using Temperature: | 1250 | Package: | Wooden Box |
| MOQ: | 300PCS | Density: | 2.0g/cm3 |
| Color: | Yellow | Shape: | Block |
| High Light: | 100mm kiln shelves and posts,Cordierite kiln shelves and posts,100mm kiln posts |
||

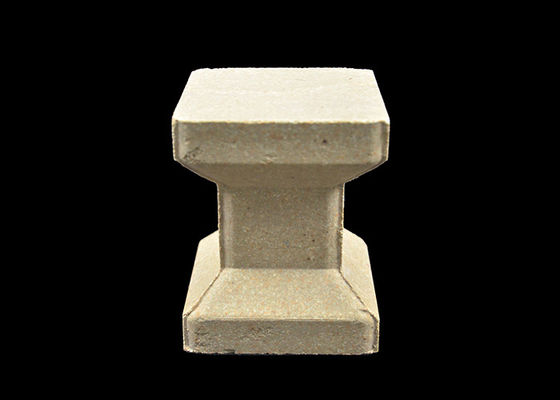

1.Description of Cordierit mullite support/pillar
2. Tech data of Cordierite mullite support/pillar
|
Classification Temp
|
1250℃
|
1280℃
|
1300℃
|
1350℃
|
|
Mineralogy
|
Cordierite mullite
|
|||
|
Al2O3 /%
|
41
|
41
|
36
|
46
|
|
SiO2 /%
|
48
|
47
|
52
|
44
|
|
MgO /%
|
7
|
7
|
7
|
6
|
|
Bulk Desity /g/cm3
|
1.9
|
1.95
|
1.85
|
2
|
|
Apparent porosity /%
|
28
|
26
|
28
|
25
|
|
M.O.R.at 20℃ /MPa
|
13
|
13
|
16
|
18
|
|
M.O.R.at 1250℃ /MPa
|
13
|
15
|
10
|
17
|
|
C.T.E.at 20℃-1000℃ /10-6K-1
|
2.3
|
2.2
|
2.6
|
3.1
|
|
Specificheat at 20℃ / KJ/KG·K
|
1.0
|
1.0
|
1.0
|
1.1
|
|
Max working temperature
|
1250 ℃
|
1280℃
|
1300℃
|
1350℃
|
|
Remark:
|
(1)M.O.R.=Modulus of rupture. (2)C.T.E.=Coefficient of thermal expansion
|
|||
3. Application of cordierite mullite support/pillar
Sanitary ceramic, pottery, porcelain tableware and some art ceramic firing.
